Extension Case Oil Level Check

Extension Case Oil Level Check

1) Lift up vehicle and check oil leakage.

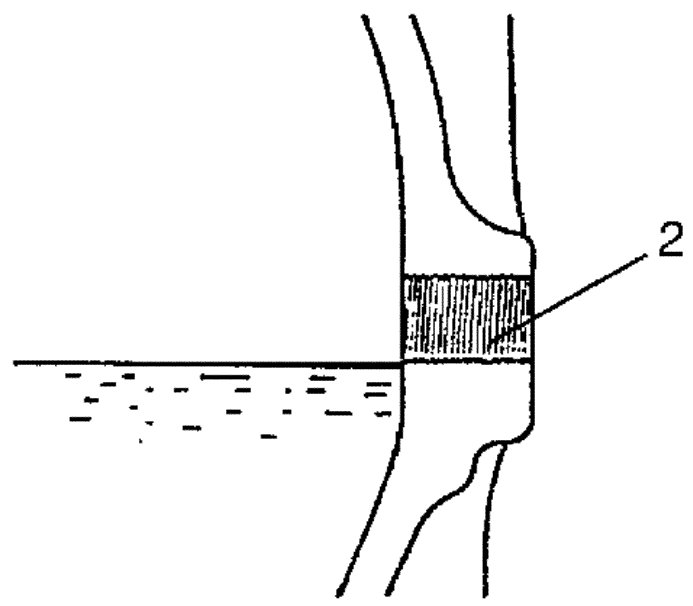

2) Remove oil level / filler plug (1) and check oil level is lower end of oil level / filler plug hole (2).

If oil level is not lower end of oil level / filler plug hole, add specified oil up to plug hole.
3) Apply sealant to thread of oil level / filler plug, and tighten it to specified torque referring to Extension Case Oil Change Extension Case Oil Change.
