Output Shaft Speed Sensor Removal and Installation

Output Shaft Speed Sensor Removal and Installation

Removal

1) Disconnect negative cable at battery.
2) Hoist vehicle.
3) Disconnect output shaft speed sensor connector.

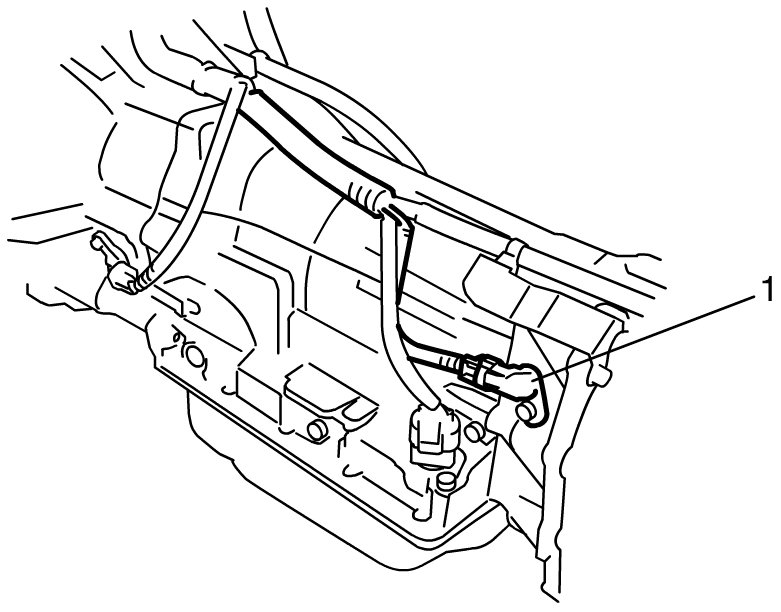

4) Remove output shaft speed sensor (1) from transmission.






Installation

1) Check that sensor is free from any metal particles and damage.

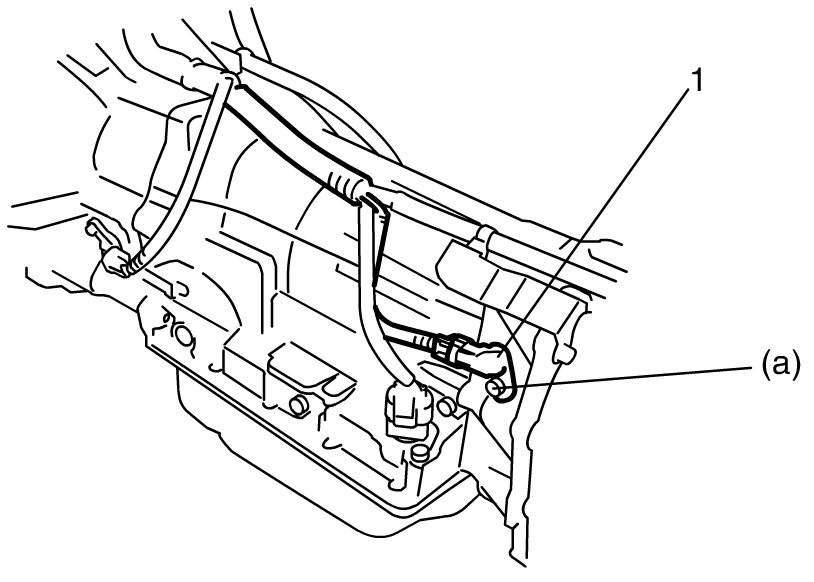

2) Apply A/T fluid to new O-ring and then install output shaft speed sensor (1) to transmission.

Tighten sensor bolt to specified torque.

Tightening torque
Output shaft speed sensor bolt (a): 7 Nm (0.7 kgf-m, 5.0 lbf-ft)





3) Connect output shaft speed sensor connector.
4) Lower hoist.
5) Connect negative cable at battery.
