A/T Symptom Diagnosis




A/T Symptom Diagnosis

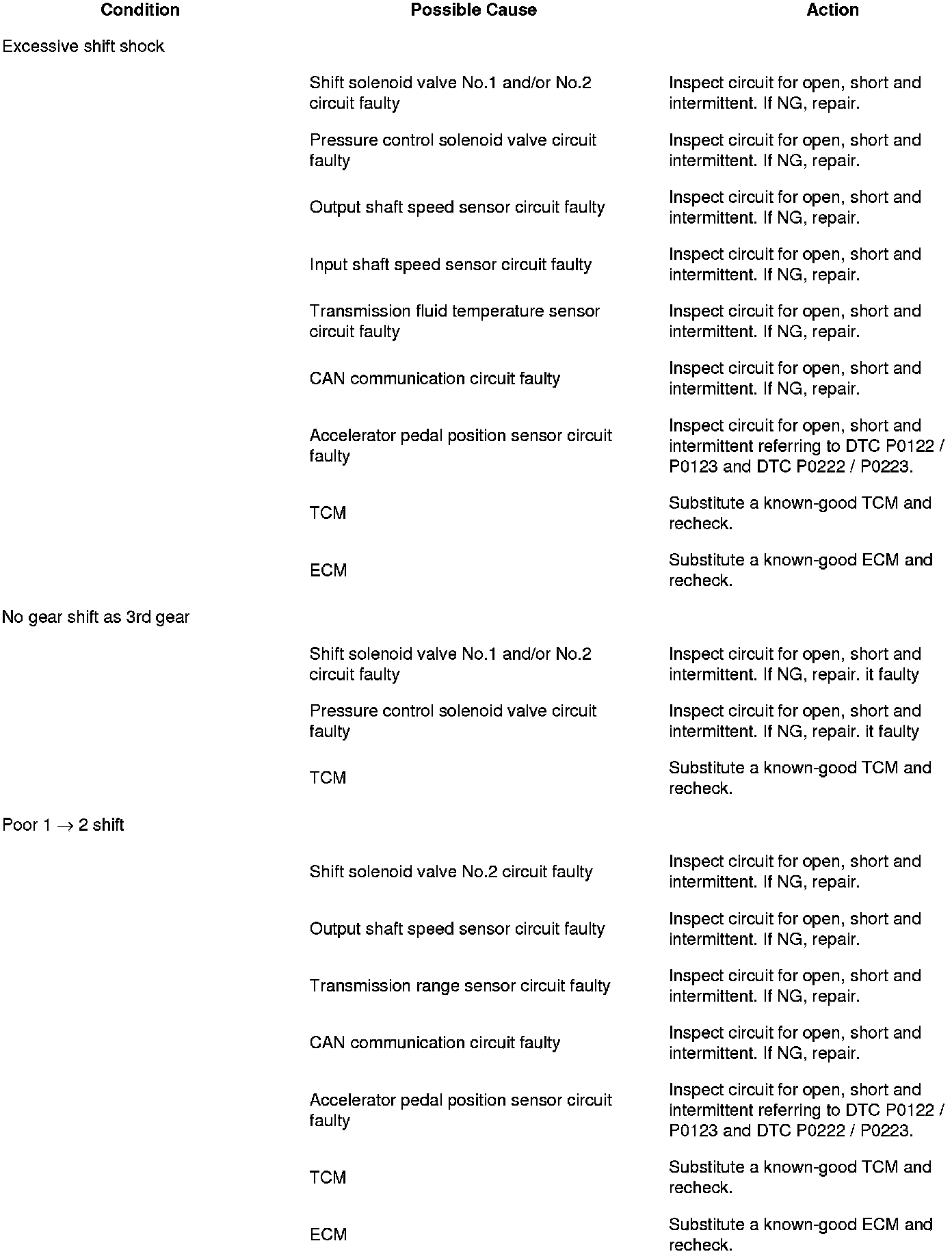

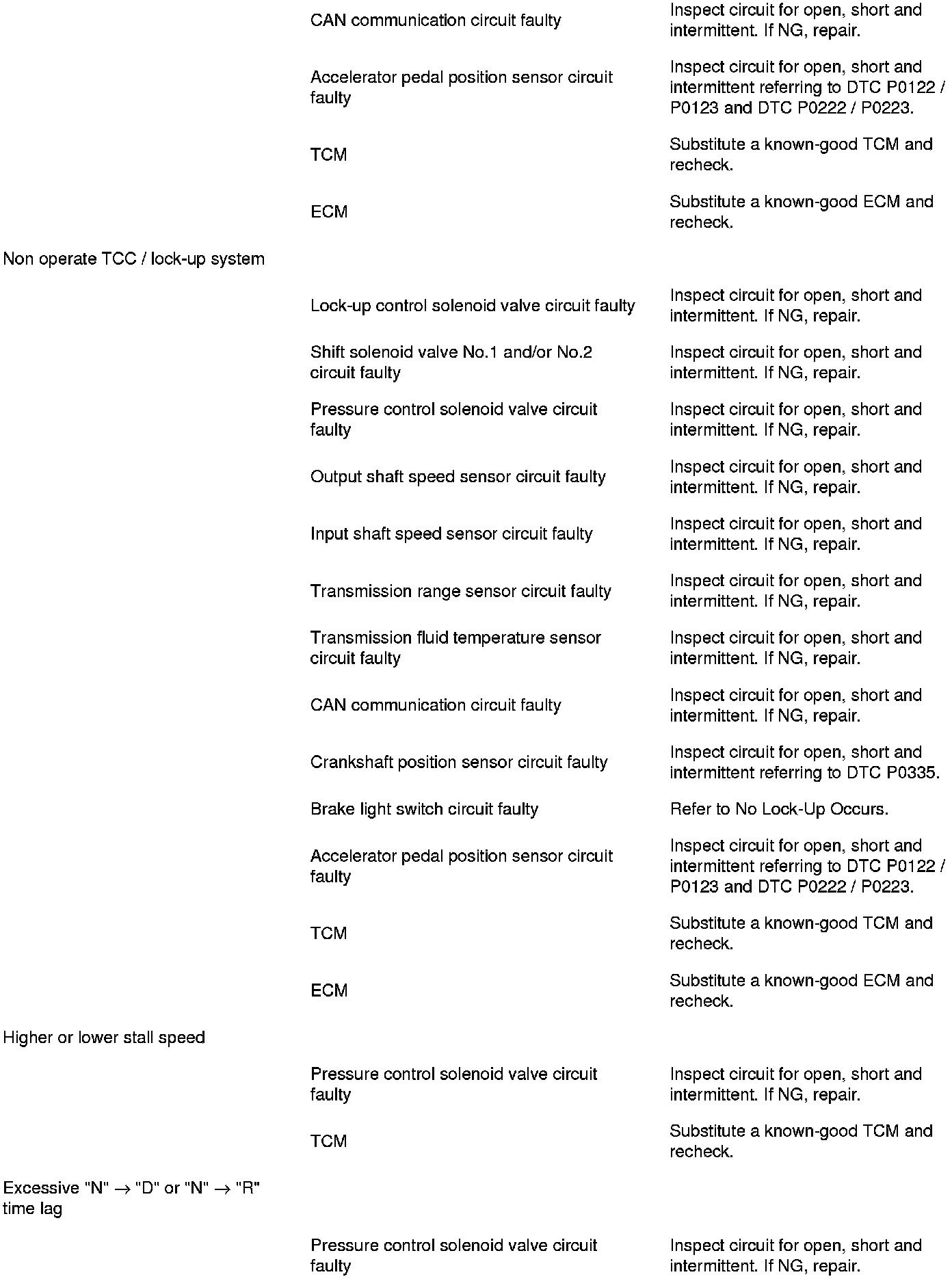

Trouble Diagnosis 1

Electrical repair

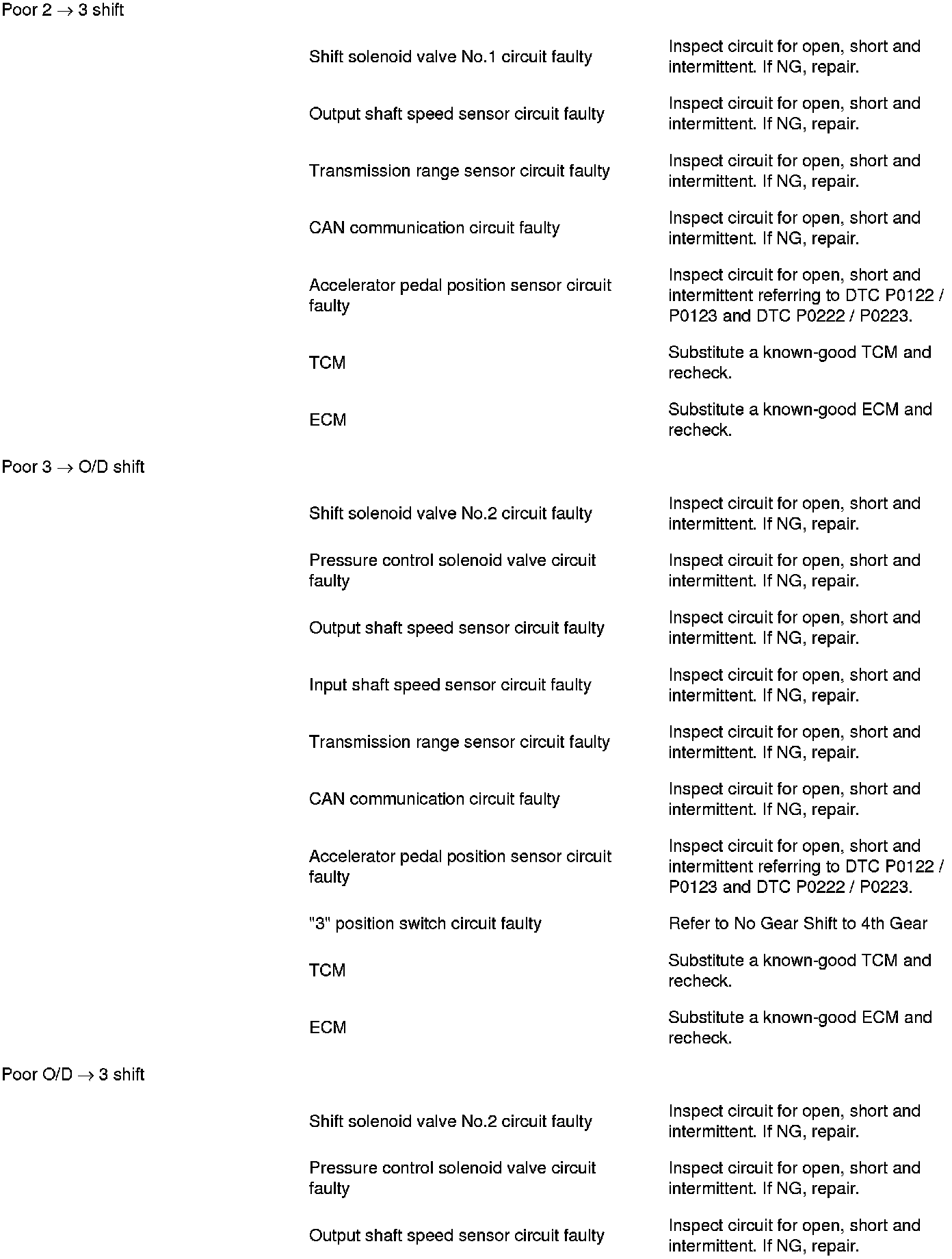

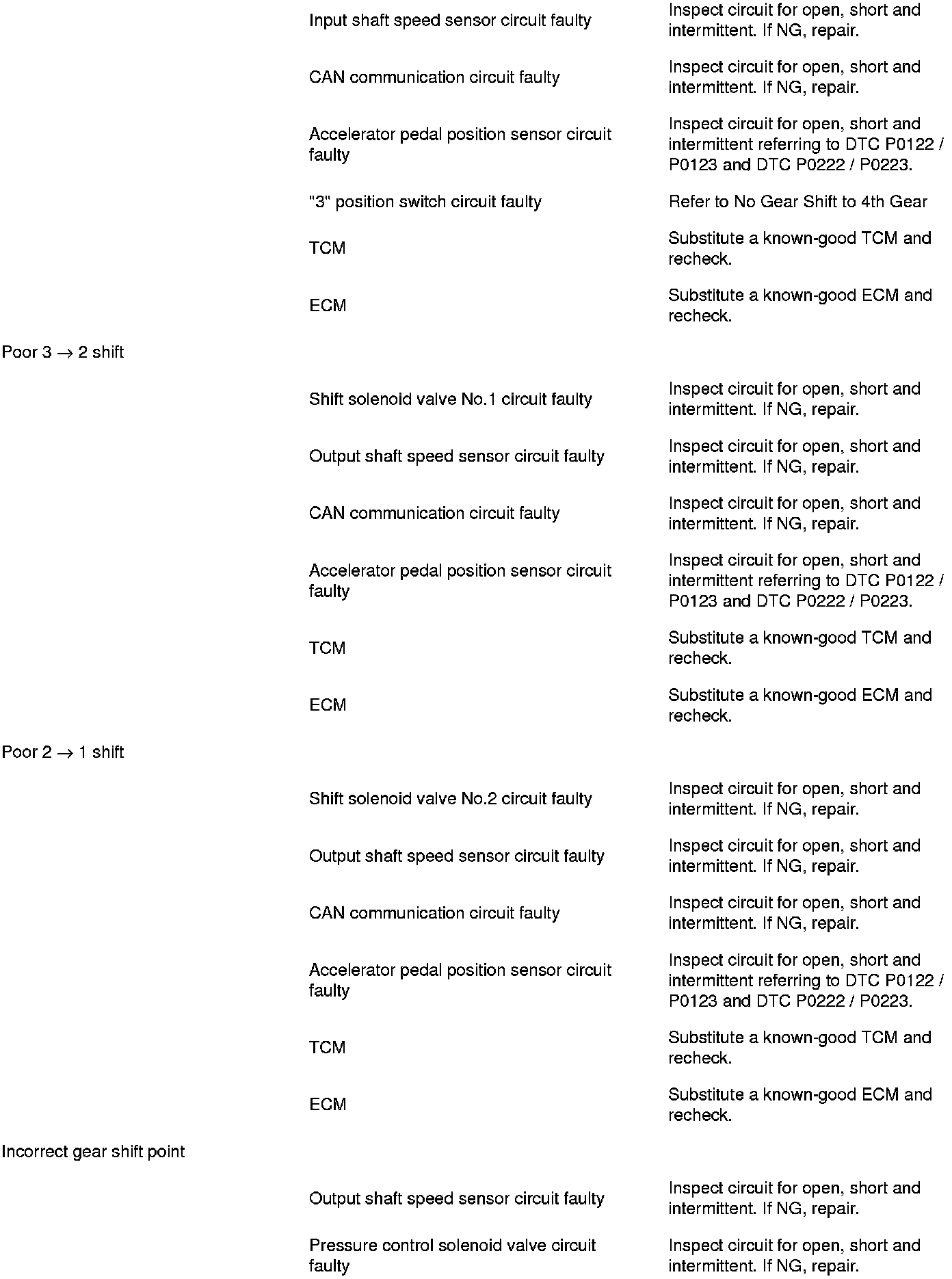

Trouble Diagnosis 2

On-vehicle repair

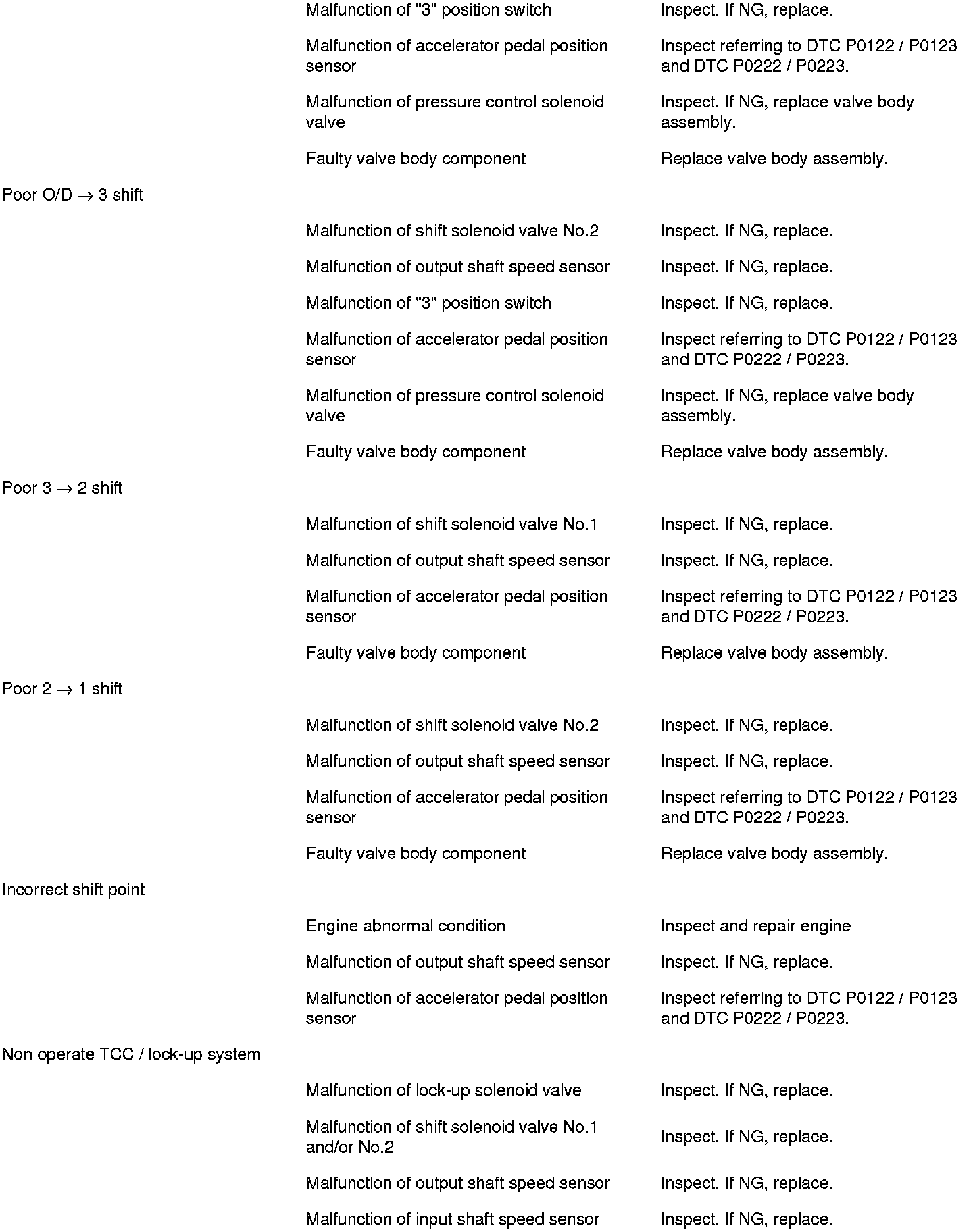

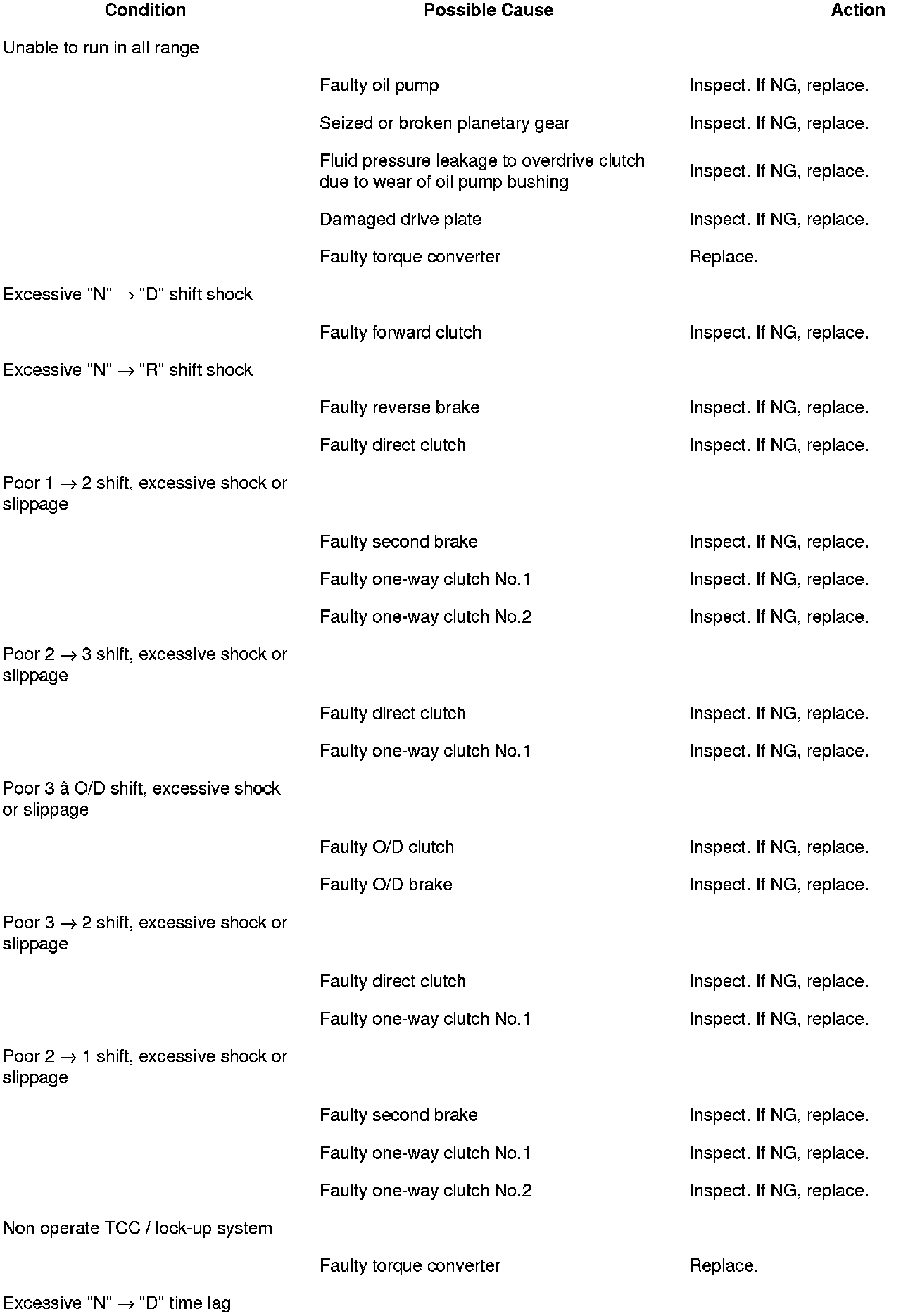

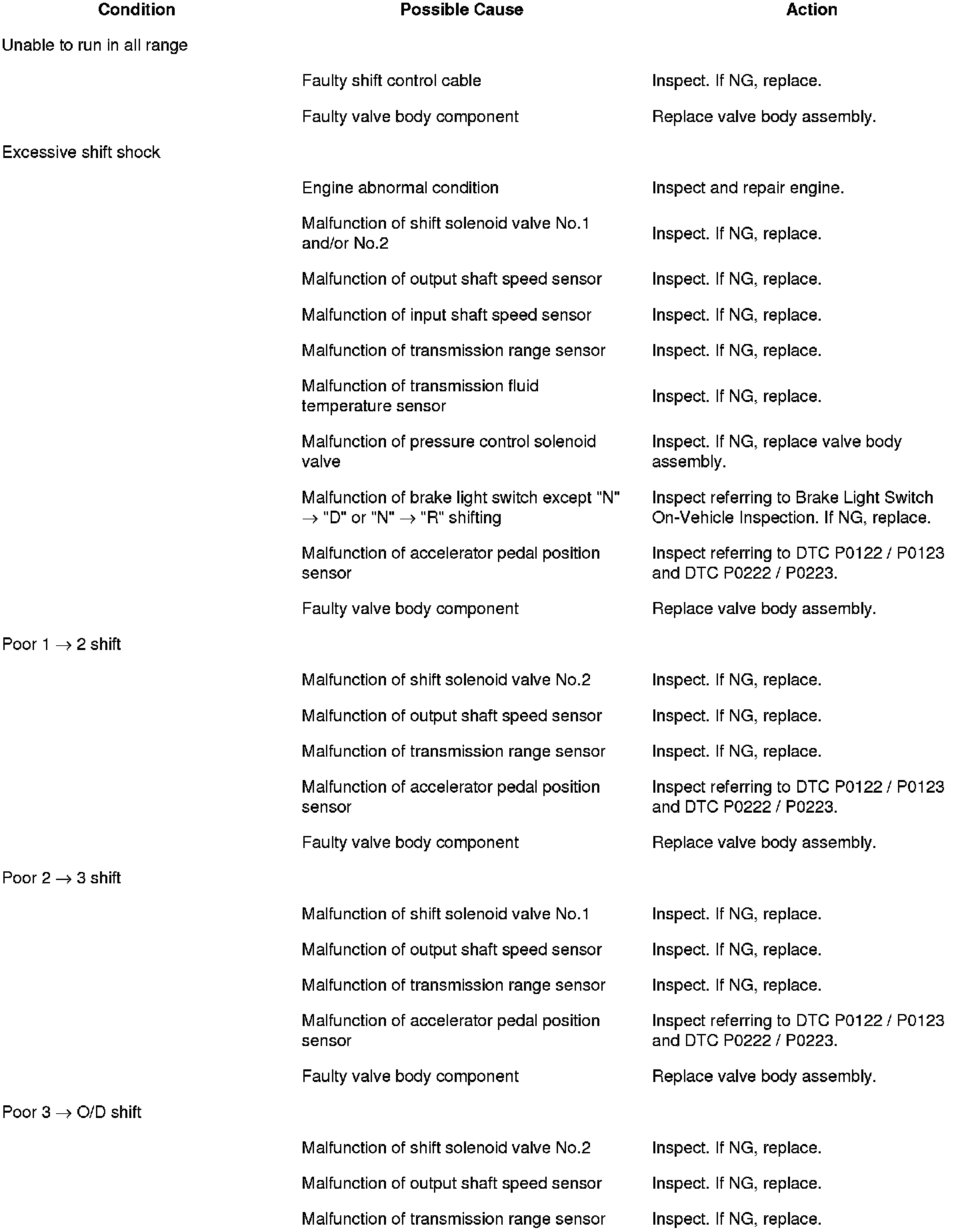

Trouble Diagnosis 3

Off-vehicle repair
