Select Lever Knob Installation

Select Lever Knob Installation

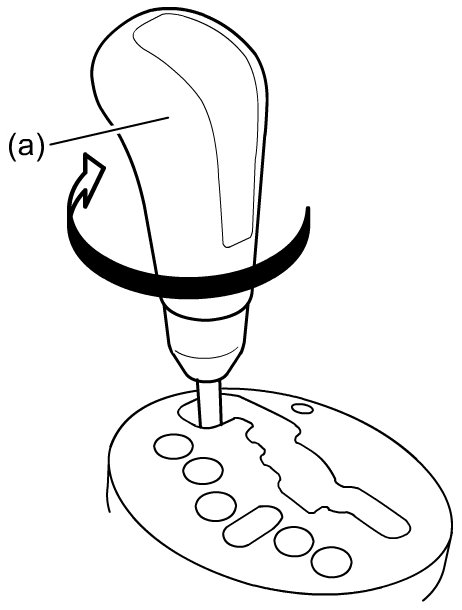

Screw select lever knob onto select lever by specified numbers of rotation below.

Rotation numbers for select lever knob
Installation (a): 13 - 14 rotations

NOTE:

The select lever knob will be damaged if it is turned too many times when screwing it onto the lever.

Do not turn the select lever knob more than the specified number of times when screwing it onto the lever.
