Manual Selector Assembly Removal and Installation

Manual Selector Assembly Removal and Installation

Manual Selector Assembly Components

Removal

1) Disconnect negative cable at battery.
2) Remove front console box.
3) Disconnect shift lever switch connector.
4) Remove manual selector assembly mounting bolts.

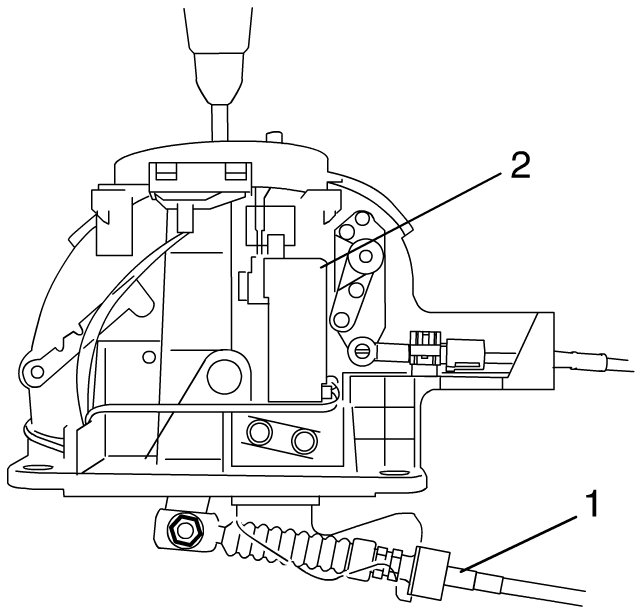

5) Disconnect select cable (1) from manual selector assembly (2).






Installation

Reverse removal procedure to install manual selector assembly noting the following instructions.

- Tighten manual selector assembly mounting bolts to specified torque.

Tightening torque
Manual selector assembly mounting bolt 18 Nm (1.8 kgf-m, 13.0 lbf-ft)

- Adjust select cable referring to Adjustments Select Cable Adjustment
