Trailing Arm: Testing and Inspection

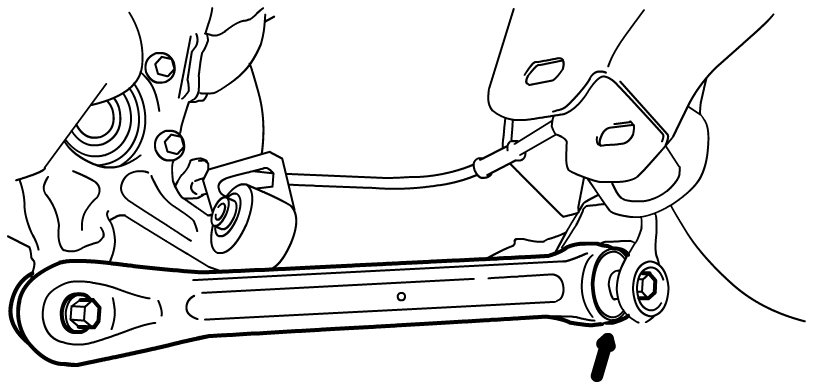

Trailing Rod Check

Trailing Rod Removal and Installation

- Inspect for cracks, deformation or damage.
- Inspect bushing for wear and breakage.

If any faulty condition is found, replace.
