Overhaul

Trailing Rod / Bushing Disassembly and Reassembly

Trailing Rod Removal and Installation

Disassembly

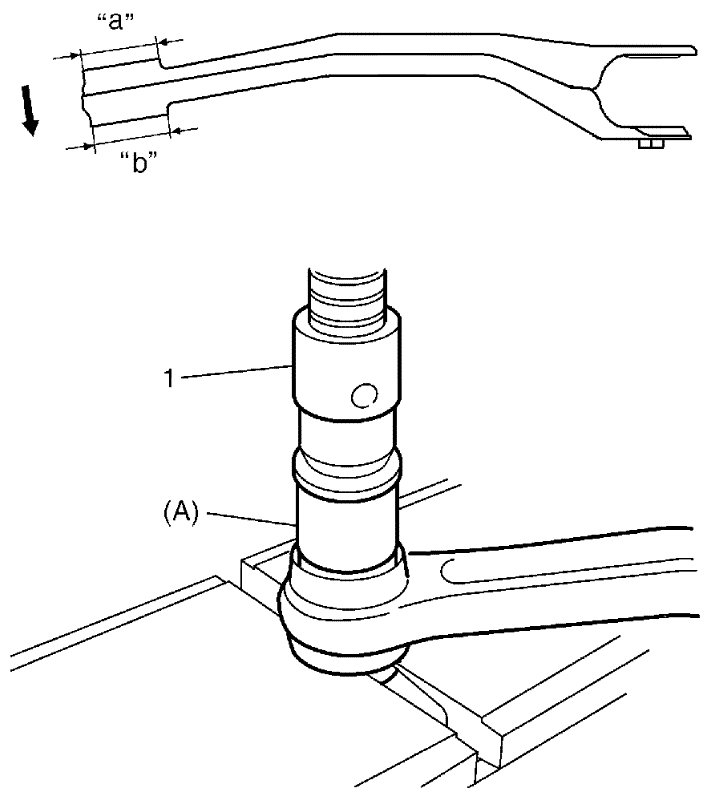

1) Push out trailing rod bushing by using hydraulic press (1) and special tool.

NOTE:
Remove bushing following the direction shown in figure since diameter "b" is bigger than diameter "a".

Special Tool

(A): 09945-56510





Reassembly

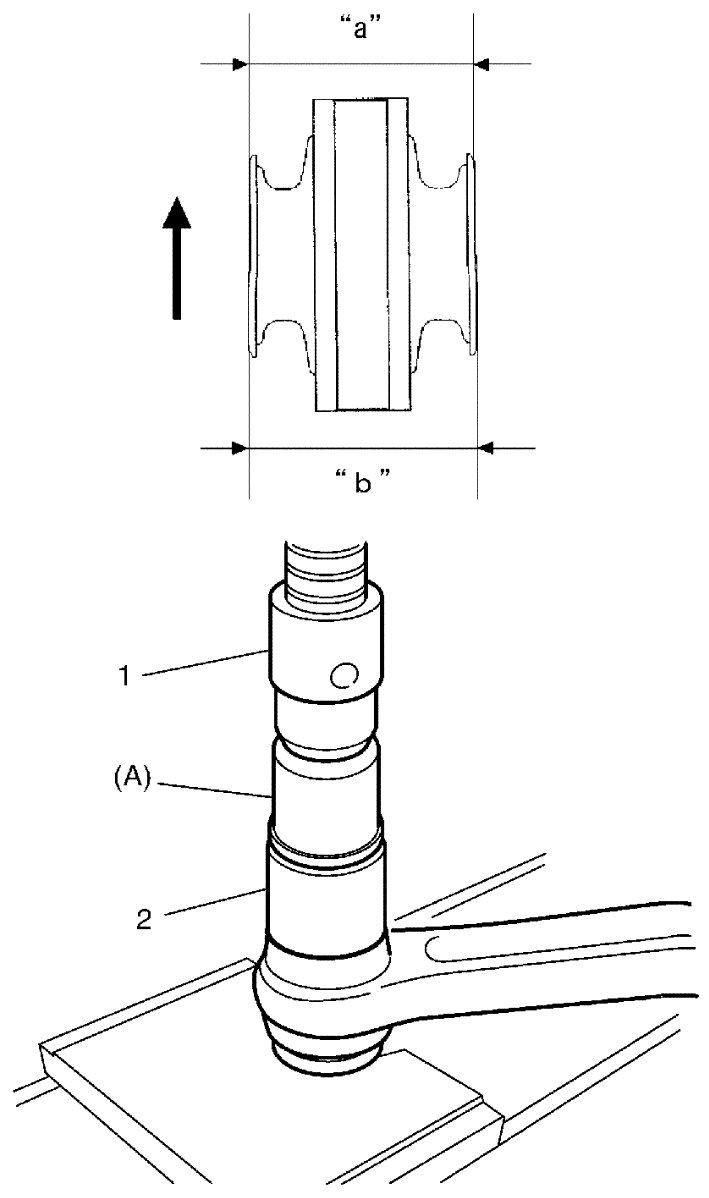

1) Press-fit trailing rod bushing (2) by using press (1) and special tool.

NOTE:
- Any removed bushing will not fit properly if you reuse it.
Always use a new bushing.
- Install bushing following the direction shown in figure since diameter "b" is bigger than diameter "a".

Special Tool

(A): 09945-56510

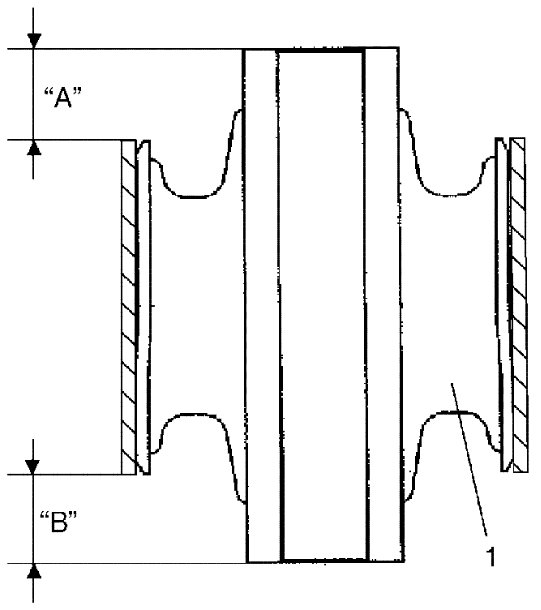

2) Press-fit bushing (1) so that dimensions "A" and "B" in figure become equal.
