Headlamp Igniter Module: Service and Repair

Igniter Removal and Installation

Removal

1) Remove ballast referring to Service and Repair Ballast Removal and Installation.

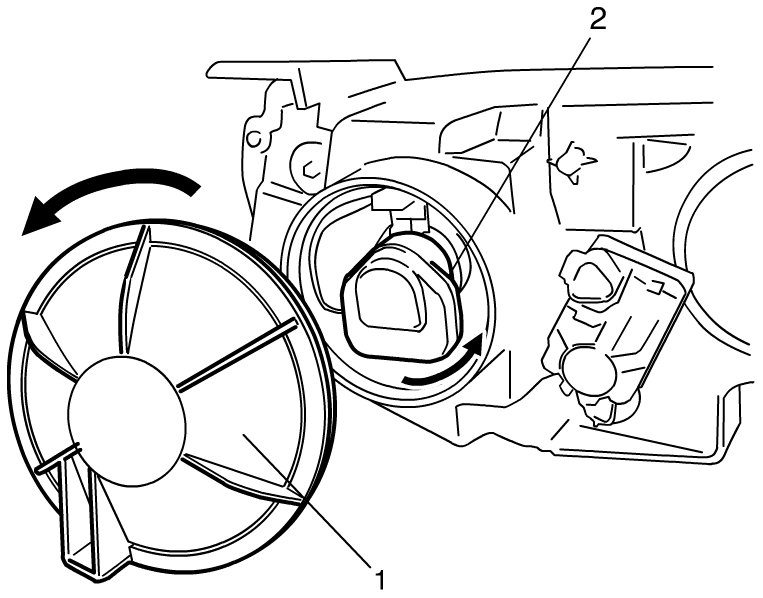

2) Remove cover (1) from headlight housing by turning it counterclockwise.
3) Remove igniter (2) from discharge headlight bulb by turning it counterclockwise.

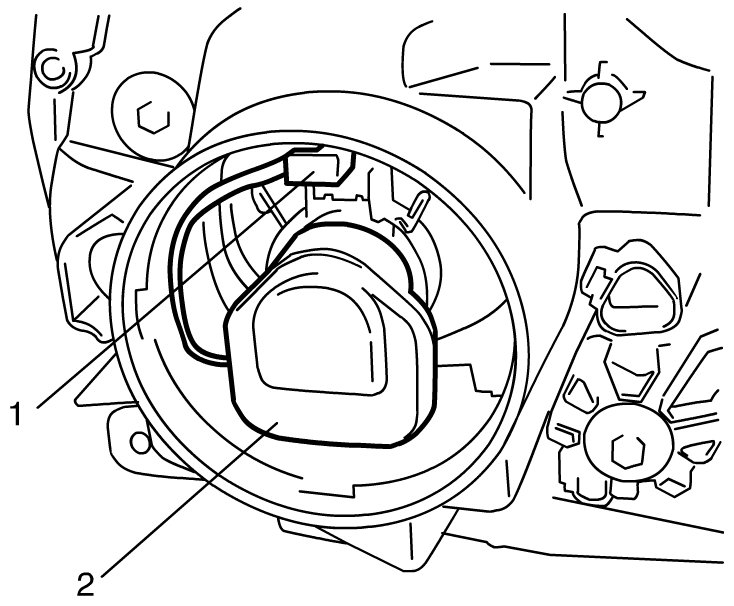

4) After disconnecting ground wire (1), pull out igniter (2) from headlight housing.






Installation

Reverse removal procedure noting the following.

- Connect connectors securely.
- After installation, be sure to inspect and adjust aiming referring to Adjustments Headlight Aiming Adjustment with Screen.
