Air Cleaner Assembly Removal and Installation




Air Cleaner Assembly Removal and Installation

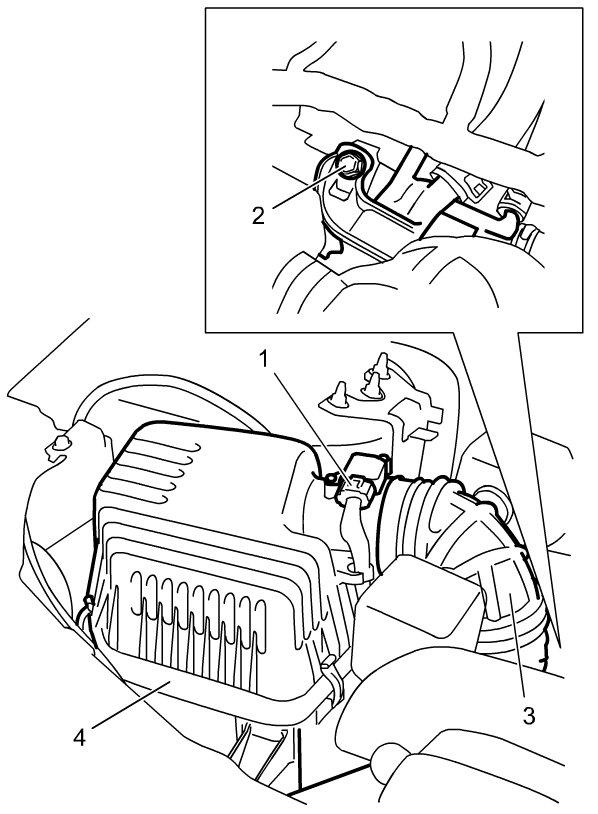

Air Cleaner Components

Removal

1) Disconnect negative (-) cable from battery.
2) Disconnect MAF and IAT sensor connector (1).
3) Remove water bypass pipe bolt (2).
4) Remove air cleaner outlet hose (3).
5) Remove air cleaner assembly (4).






Installation

Reverse removal procedure for installation.
