Fuel Line On-Vehicle Inspection

Fuel Line On-Vehicle Inspection

Fuel System Components

WARNING:

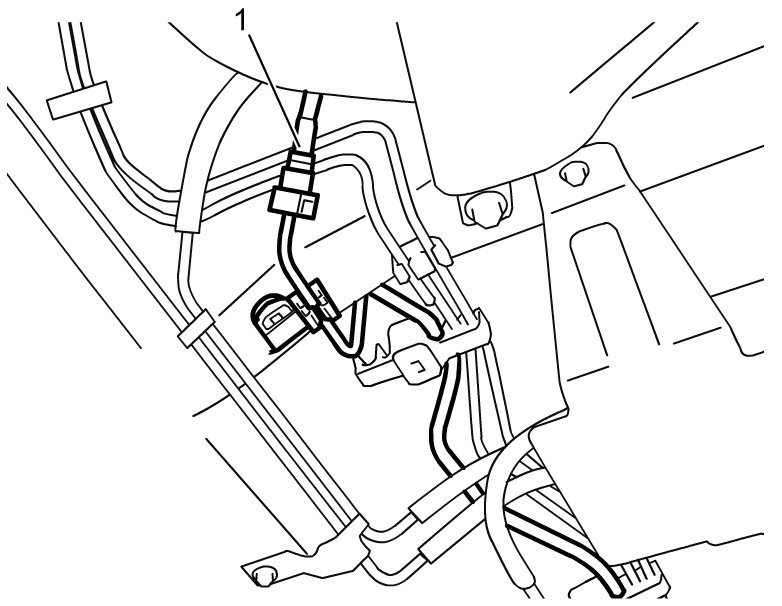

Fuel in the fuel feed line (1) is under high pressure and can spray out causing a fire and/or personal injury.

Use special care when inspecting the fuel feed line.

Visually inspect fuel lines for evidence of fuel leakage, hose (1) crack, deterioration and damage.

Make sure all clamps are secure.

Replace parts as needed.
