CMP (Camshaft Position) Sensor Removal and Installation

CMP (Camshaft Position) Sensor Removal and Installation

CMP (Camshaft Position) Sensor On-Vehicle Inspection

Removal

1) Disconnect negative cable from battery.
2) Disconnect connector from CMP sensor.
3) Remove CMP sensor from cylinder head.

Installation

CMP (Camshaft Position) Sensor Inspection
1) Reverse removal procedure noting the following.

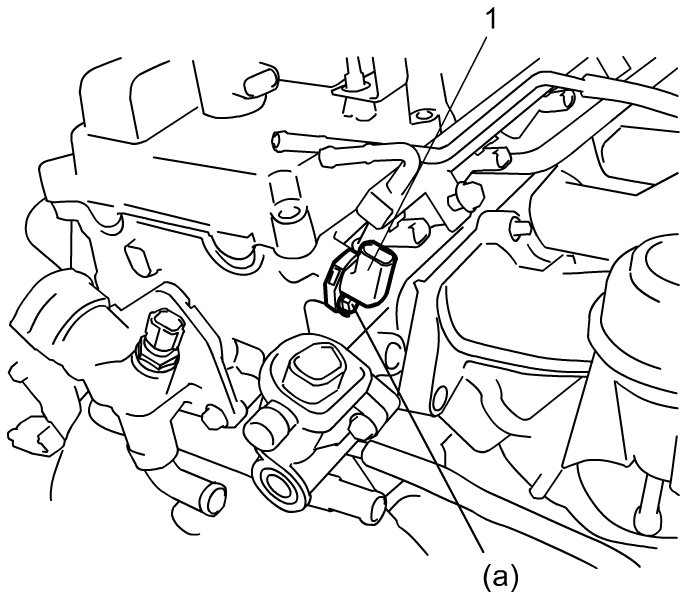

- Apply engine oil to O-ring of CMP sensor (1).
- Tighten CMP sensor bolt to specified torque.

Tightening torque
CMP sensor bolt (a): 11 Nm (1.1 kgf-m, 8.5 lbf-ft)
