Lighting and Horns: Service and Repair

Ballast Removal and Installation

Removal

1) Check to ensure that lighting switch is at OFF position.
2) Disconnect negative (-) cable at battery.
3) Remove headlight housing referring to Headlight Housing Removal and Installation Headlight Housing Removal and Installation.

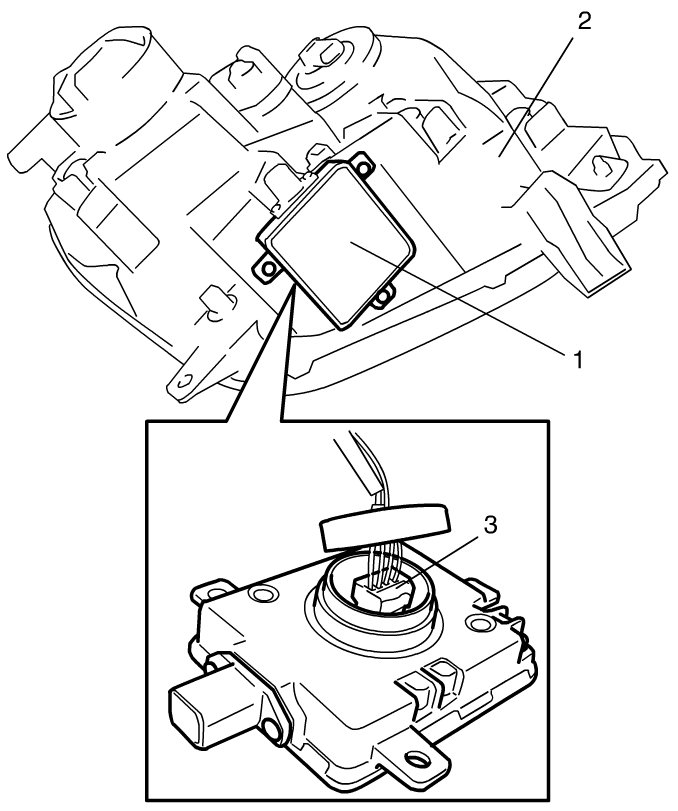

4) Remove ballast (1) from headlight housing (2).
5) Disconnect connector (3) from ballast.






Installation

Reverse removal procedure noting the following.

- Connect connectors securely.
- After installation, be sure to inspect and adjust aiming referring to Adjustments Headlight Aiming Adjustment with Screen.
