Front Fog Light Bulb Replacement (If Equipped)

Front Fog Light Bulb Replacement (If Equipped)

Front Fog Light Removal and Installation (If Equipped)

CAUTION:

Touching a hot bulb may cause a burn.

Do not touch any bulb when it is hot.

NOTE:

If you touch the glass surface of a bulb with your bare hand, the oils from your skin can cause the bulb to overheat and burst when the lights are on.

Do not touch any bulb when removing the headlight housing.

1) Remove front bumper referring to Service and Repair Front Bumper Components.

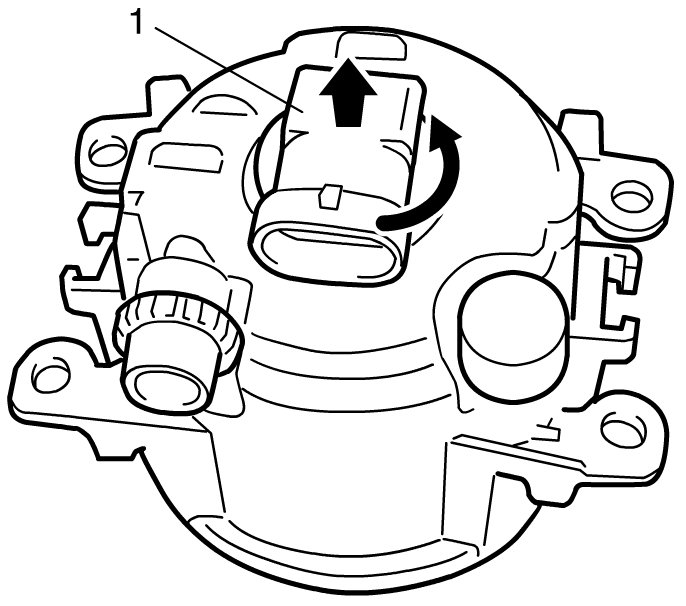

2) Remove fog light bulb (1) as shown.





3) Replace fog light bulb and assemble all removed parts.
