DTC Clearance

DTC Clearance

Using SUZUKI Scan Tool

1) Turn OFF ignition switch.
2) Connect SUZUKI scan tool to DLC (1).
Special Tool

(A): SUZUKI scan tool (SUZUKI-SDT)





3) Turn ON ignition switch.
4) Erase DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operator's manual for further details.
5) After completing the clearance, turn ignition switch to OFF position and disconnect SUZUKI scan tool from DLC.
6) Perform DTC Check DTC Check
and confirm if normal DTC (NO CODES) is displayed.

Not Using SUZUKI Scan Tool

1) Display history DTC on LCD referring to "Not Using SUZUKI Scan Tool" under DTC Check DTC Check.

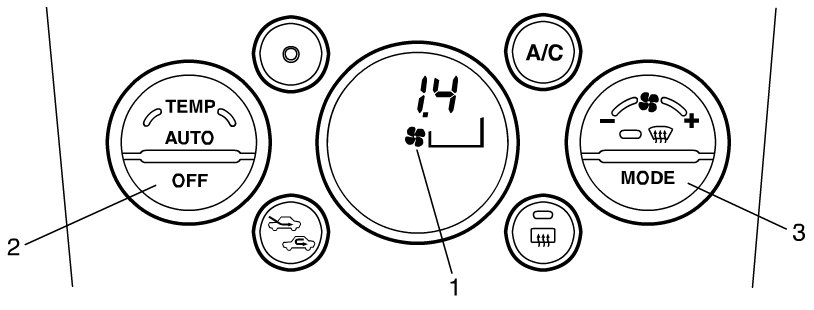

2) Make sure that DTC and "FAN" display (1) were displayed.
3) Push "OFF" switch (2) and "MODE" selector (3) simultaneously for 3 seconds or more.

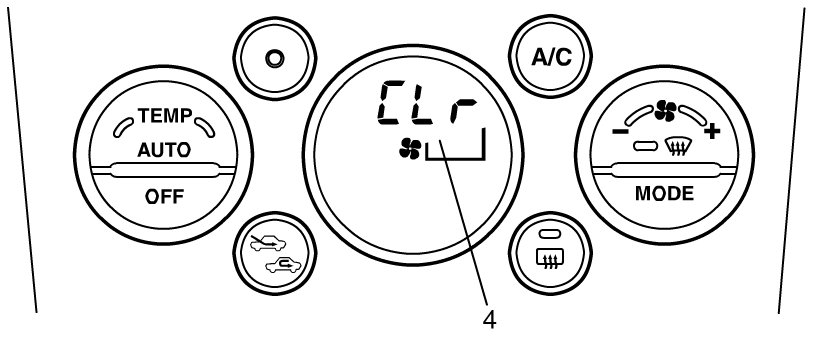

4) After completing the clearance, "CLr" (4) is displayed.





5) Check that no DTC is displayed on LCD referring DTC Check DTC Check.
