Evaporator Temperature Sensor / Switch: Description and Operation

A/C Evaporator Temperature Sensor Description

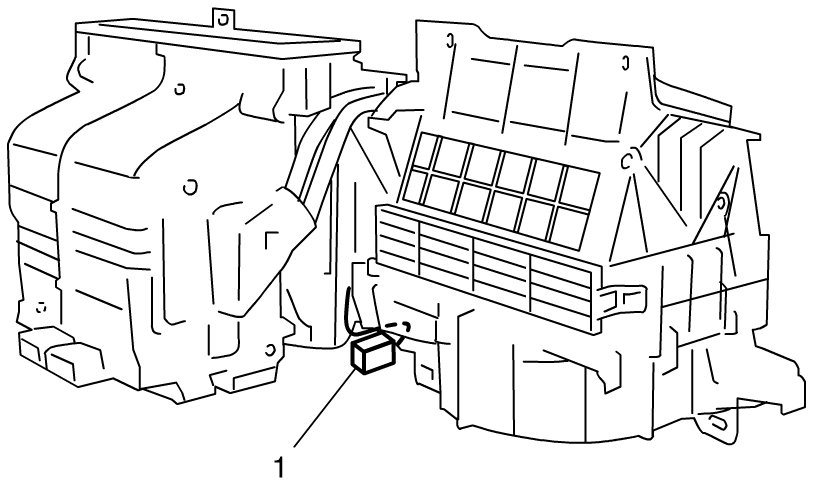

The A/C evaporator temperature sensor (1) is a temperature sensor to sense the temperature of air discharged from evaporator.





The electrical characteristic is shown.





When temperature is lower than specified, A/C controller makes magnet clutch turn off to prevent evaporator from frosting.
