Center Ventilation Louver Removal and Installation

Center Ventilation Louver Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Disable air bag system referring to Disabling Air Bag System Disabling Air Bag System:Advanced Air Bag or Disabling Air Bag System Disabling Air Bag System:Except Advanced Air Bag.
3) Remove center garnish with audio unit and HVAC control module referring to Service and Repair Audio Unit Removal and Installation.

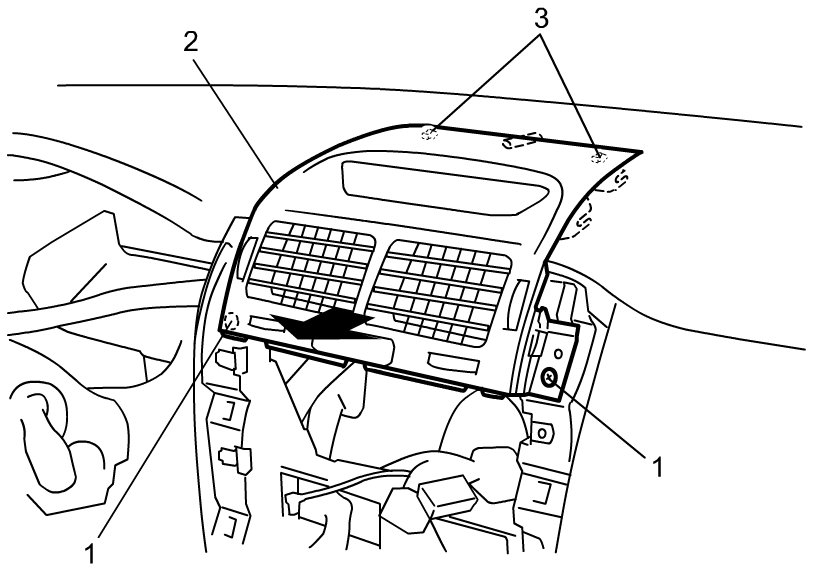

4) Remove mounting screw (1) and then pull off center ventilation louver (2).











5) Disconnect connectors and remove center ventilation louver.
6) Remove center ventilation louver from center garnish.

Installation

Reverse removal procedure, noting the following item.

- Insert backside of center ventilation louver to ventilator duct surely.

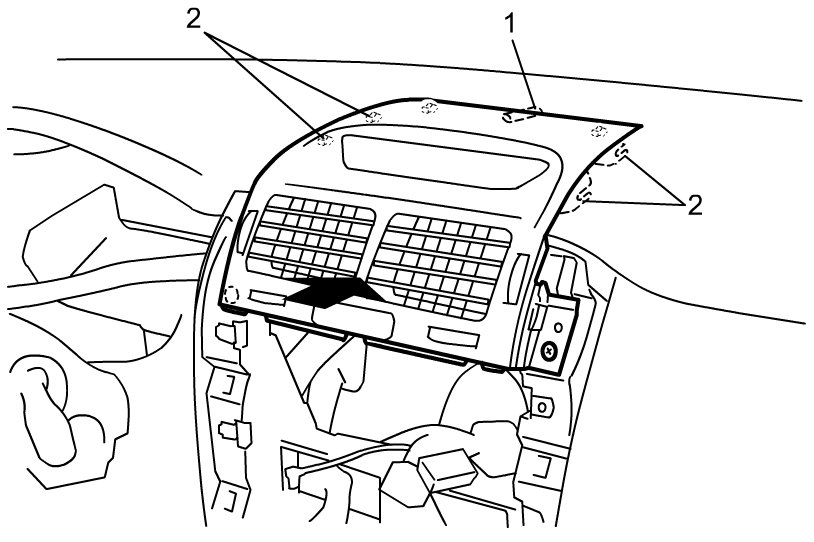

- Be sure to align boss (1) and claws (2) of center ventilation louver with installation hole of instrument panel.






- Enable air bag system referring to Enabling Air Bag System Enabling Air Bag System:Advanced Air Bag or Enabling Air Bag System Enabling Air Bag System:Except Advanced Air Bag.
