Rear Duct Removal and Installation

Rear Duct Removal and Installation

Rear Duct Components

Removal

1) Disconnect negative (-) cable at battery.
2) Remove front seats.
3) Remove console box.
4) Take off carpet till rear ducts is totally exposed.

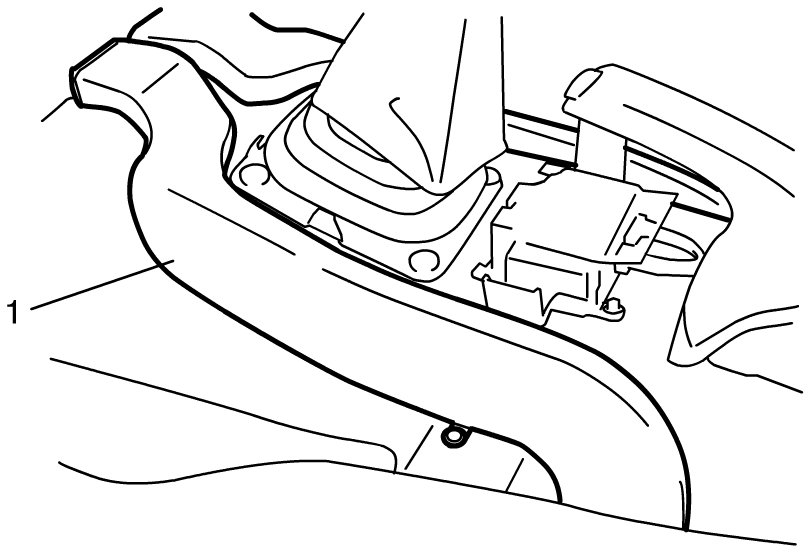

5) Remove rear ducts (1).






Installation

Reverse removal procedure noting the following.

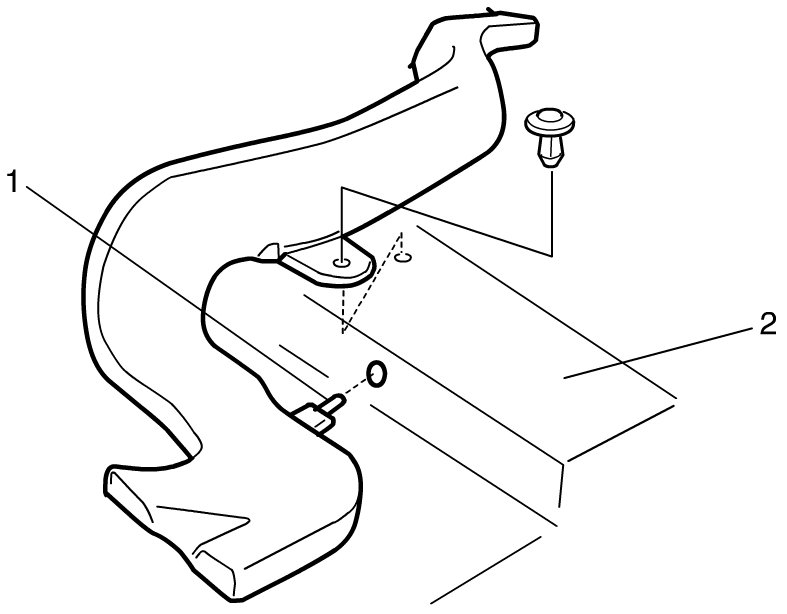

- Insert boss (1) of duct into hole of floor member (2).
