Headlight Auto Leveling System Wiring Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

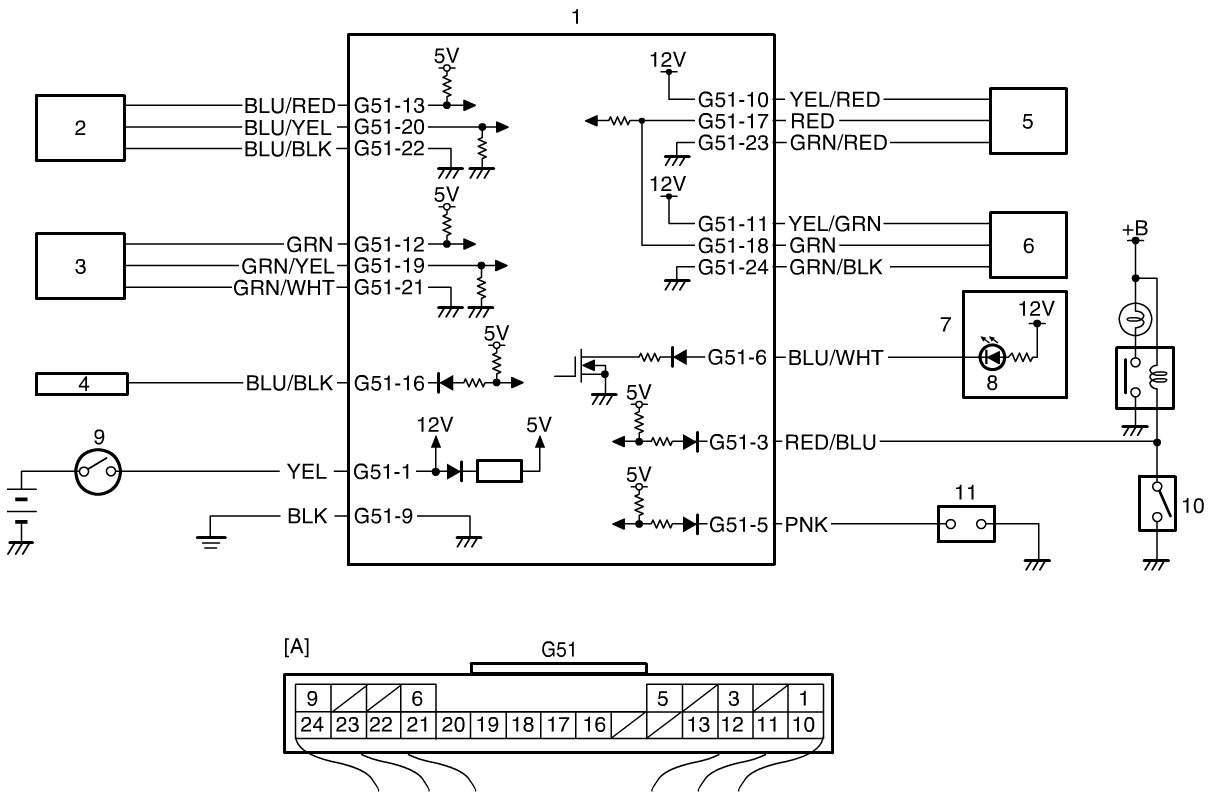

Headlight Auto Leveling System Wiring Circuit Diagram
Headlight Auto Leveling System Wiring Circuit Diagram
