D-9 Headlight Leveling System Circuit Diagram (Auto Leveling)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

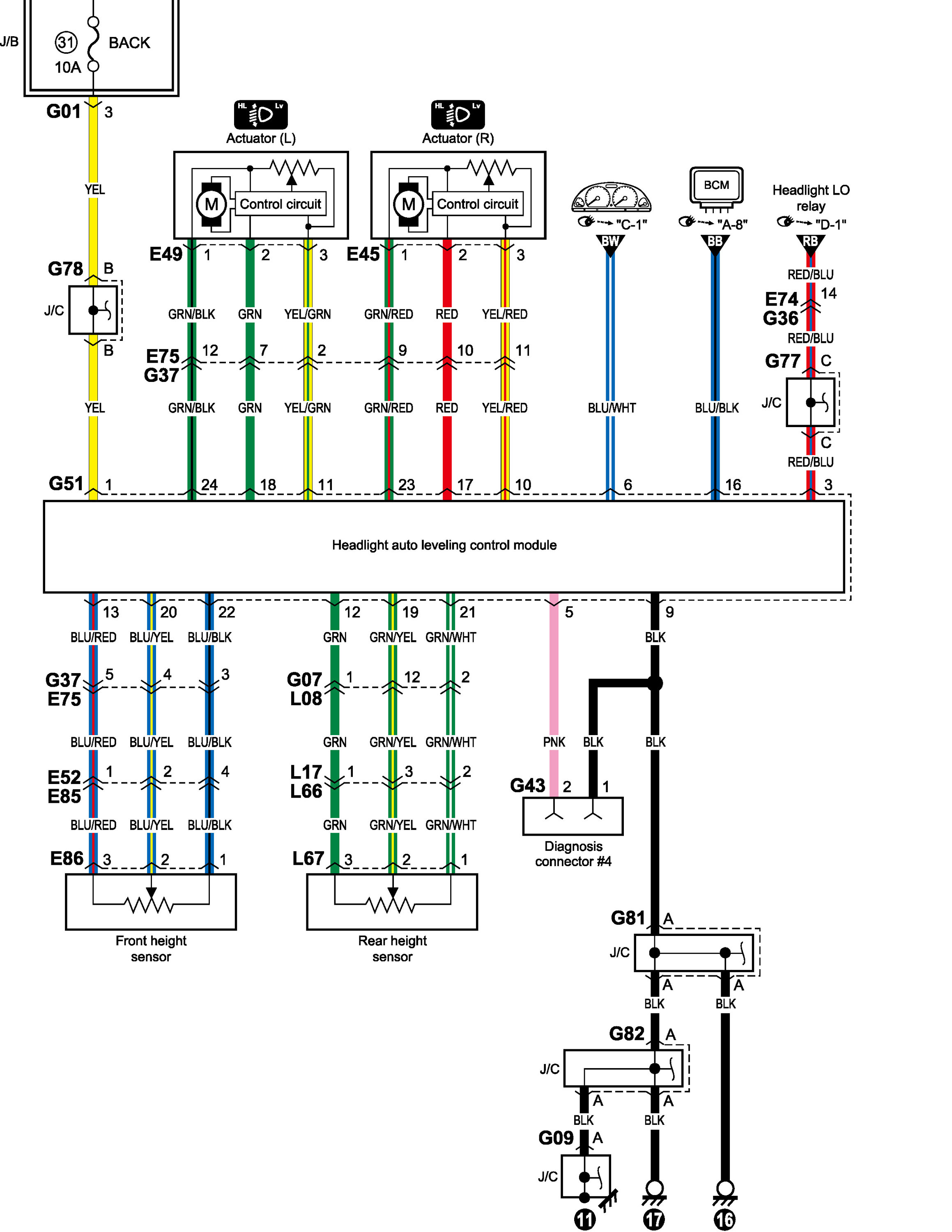

D-9 Headlight Leveling System Circuit Diagram (Auto Leveling)
D-9 Headlight Leveling System Circuit Diagram (Auto Leveling)
