Wire Color Symbols

Wire Color Symbols

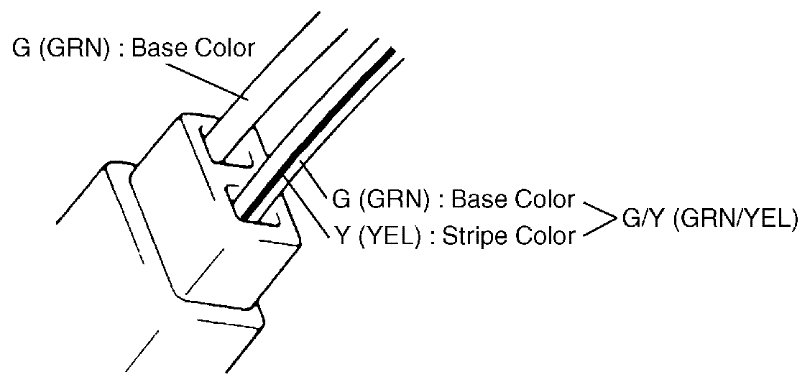

There are two kinds of colored wire used in this vehicle. One is single-colored wire and the other is dual-colored (striped) wire. As the color symbol, the single-colored wire uses only one, three or five alphabets (i.e. "G" or "GRN"); the dual-colored wire uses two color symbols combination (i.e. "G/Y" or "GRN/YEL"). The first symbol represents the base color of the wire ("G" or "GRN" in the figure) and the second symbol represents the color of the stripe ("Y" or "YEL" in the figure).
