Hill Descent Control Switch Inspection




Hill Descent Control Switch Inspection

Hill Descent Control Switch Removal and Installation

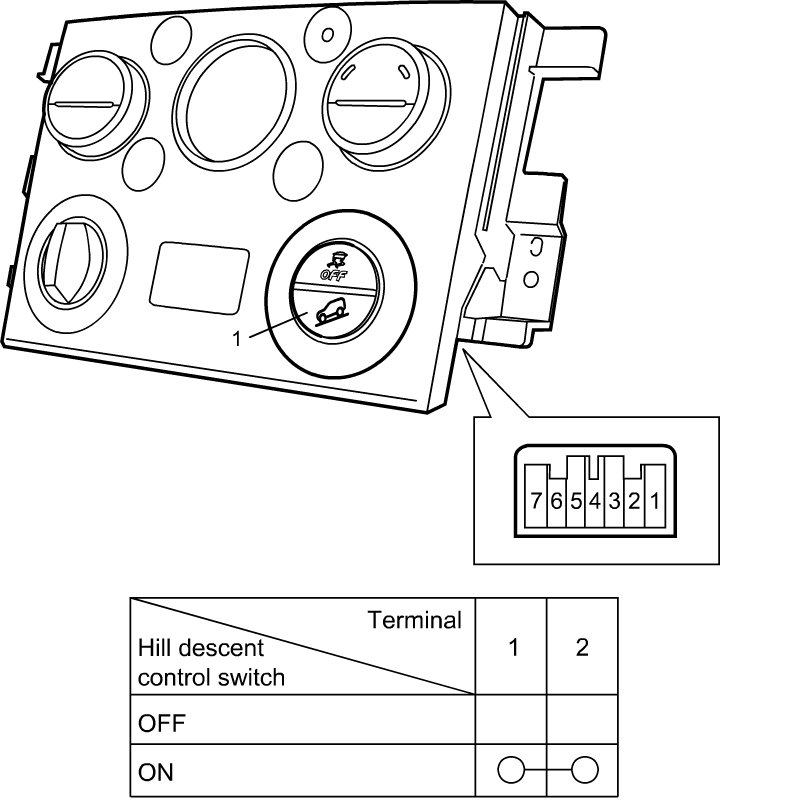

Check for continuity between terminals at each switch position.

If check result is not as specified, replace hill descent control switch (1).
