Brake Pedal Assy: Adjustments

Brake Pedal Free Height Adjustment

Measure brake pedal free height between pedal and carpet installed on dash panel.

If the measurement is not within the specification, check the position of booster push rod clevis and/or brake light switch, referring to, Master Cylinder Assembly Inspection Master Cylinder Assembly Inspection
, Adjustments Booster Push Rod Clevis Adjustment
and/or Adjustments Brake Light Switch Adjustment. The free height varies depending on installation position of booster push rod clevis and brake light switch.

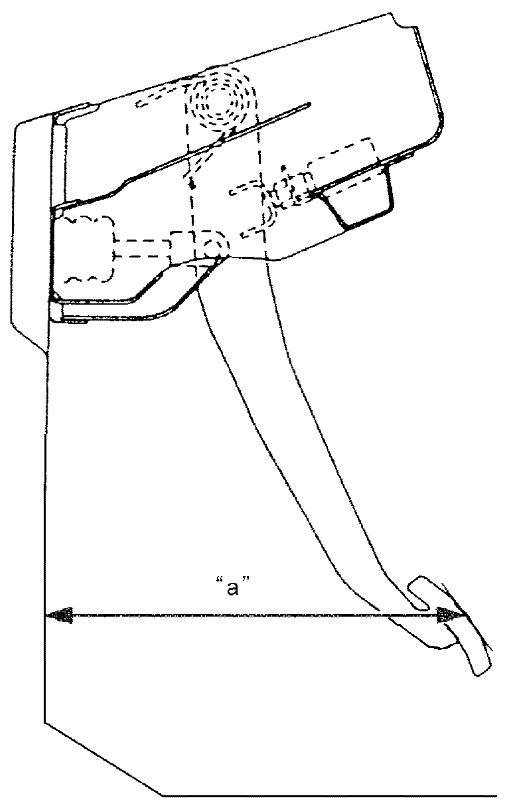

Brake pedal free height "a" from carpet
"a": 190 - 200 mm (7.48 - 7.78 in.)
