ESP OFF Switch Removal and Installation




ESP(R) OFF Switch Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.

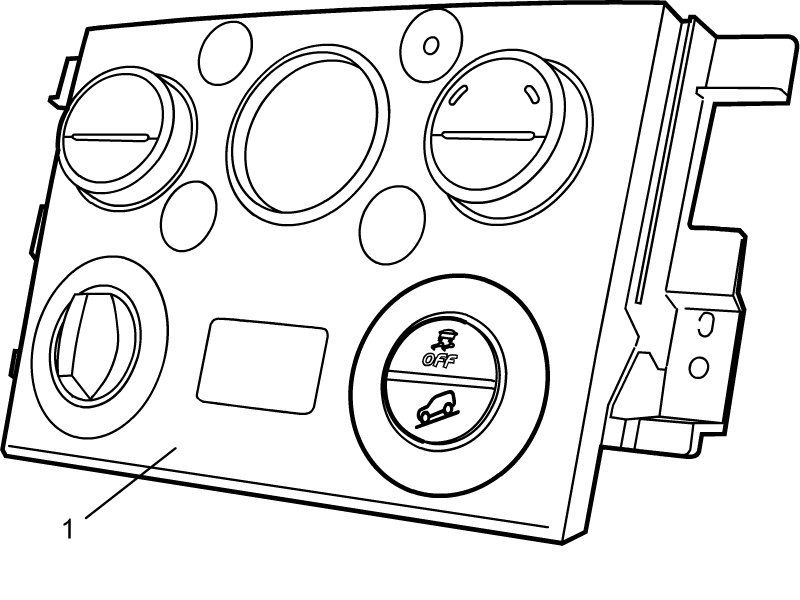

2) Remove center garnish (1) with audio unit (if equipped), HVAC control module and ESP(R) OFF switch. Service and Repair






Installation

ESP(R) OFF Switch Inspection

Reverse removal procedure.
