Power Door Lock Actuator: Testing and Inspection

Power Door Lock Actuator Inspection (If Equipped)

NOTE:

If rear end door is closed and the rear end door lock actuator does not function in unlock position, follows the procedures to unlock the rear end door lock actuator.

1 Remove cap (1).

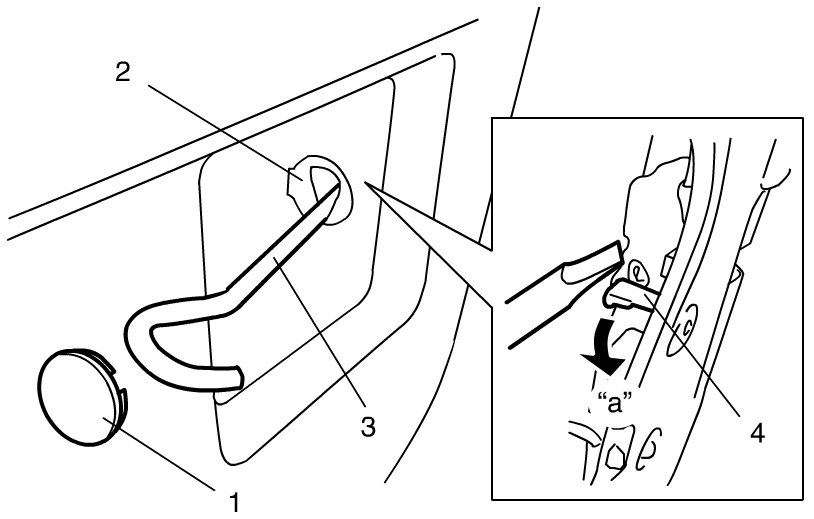

2 Penetrate door sealing cover (2) by jack lever (3) or whatever to insert jack lever, and push emergency lever (4) into unlock position "a".





3 After inspection replace door sealing cover.

1) Remove door trim from door panel.

For front door, refer to Step 1) to 3) of Front Door Glass Removal and Installation Front Door Glass Removal and Installation.

For rear door, refer to Step 1) to 3) of Rear Door Glass Removal and Installation Rear Door Glass Removal and Installation.

For rear end door, refer to Step 1) of Rear Door Assembly Removal and Installation Rear Door Assembly Removal and Installation.
2) Disconnect power door lock actuator coupler.
3) Connect battery positive (+) and negative (-) terminals to the door lock actuator terminals (a, b, c, d) as shown in figure.

If it does not operate as specified in the following table, replace door lock assembly.

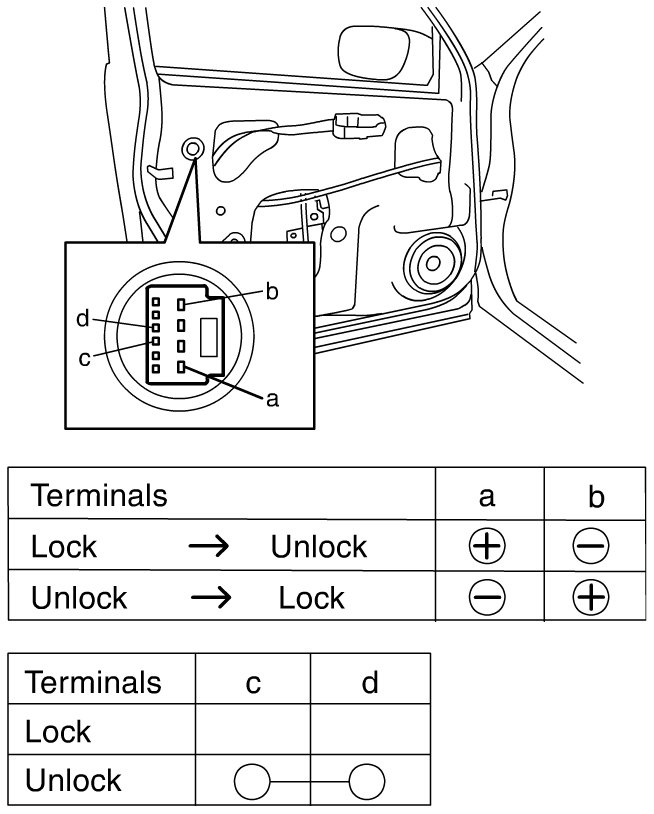

For front door

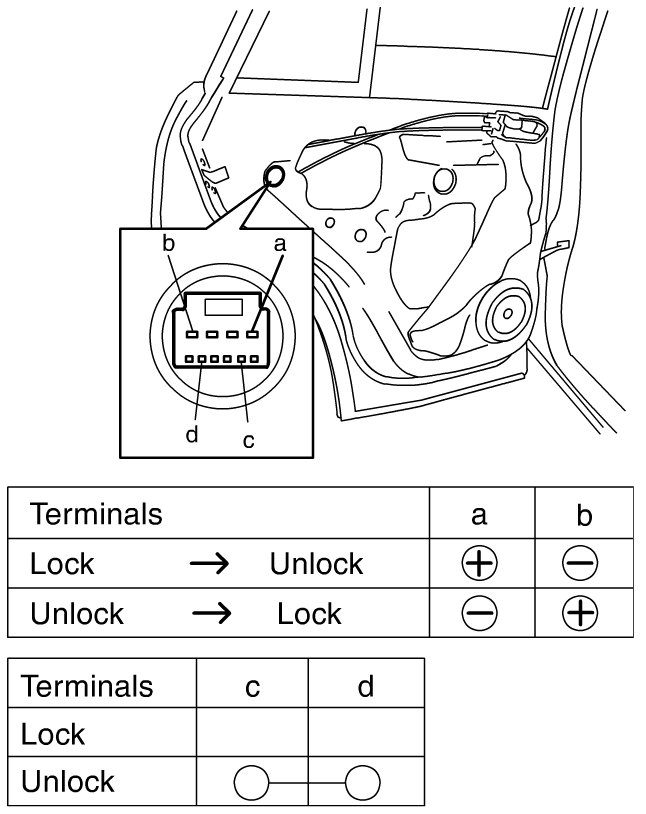

For rear door

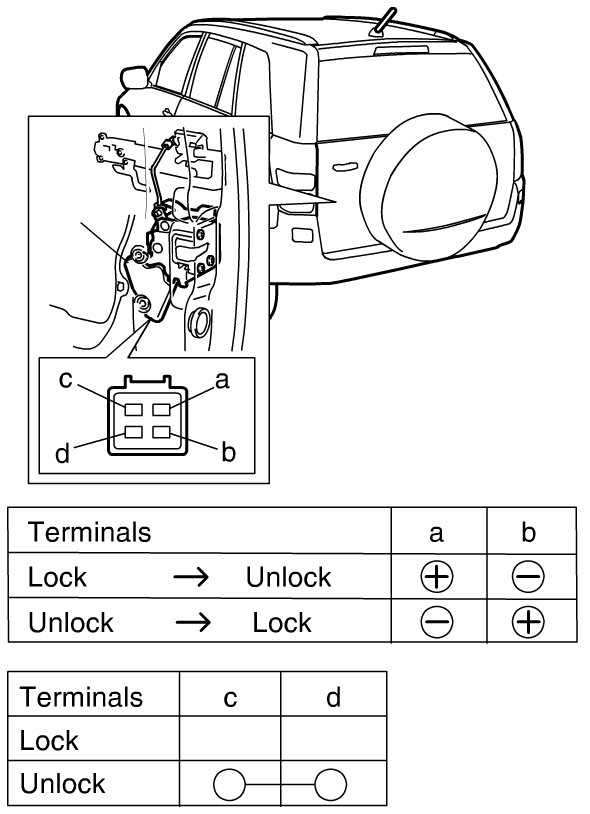

For rear end door
