Tire Pressure Monitoring System

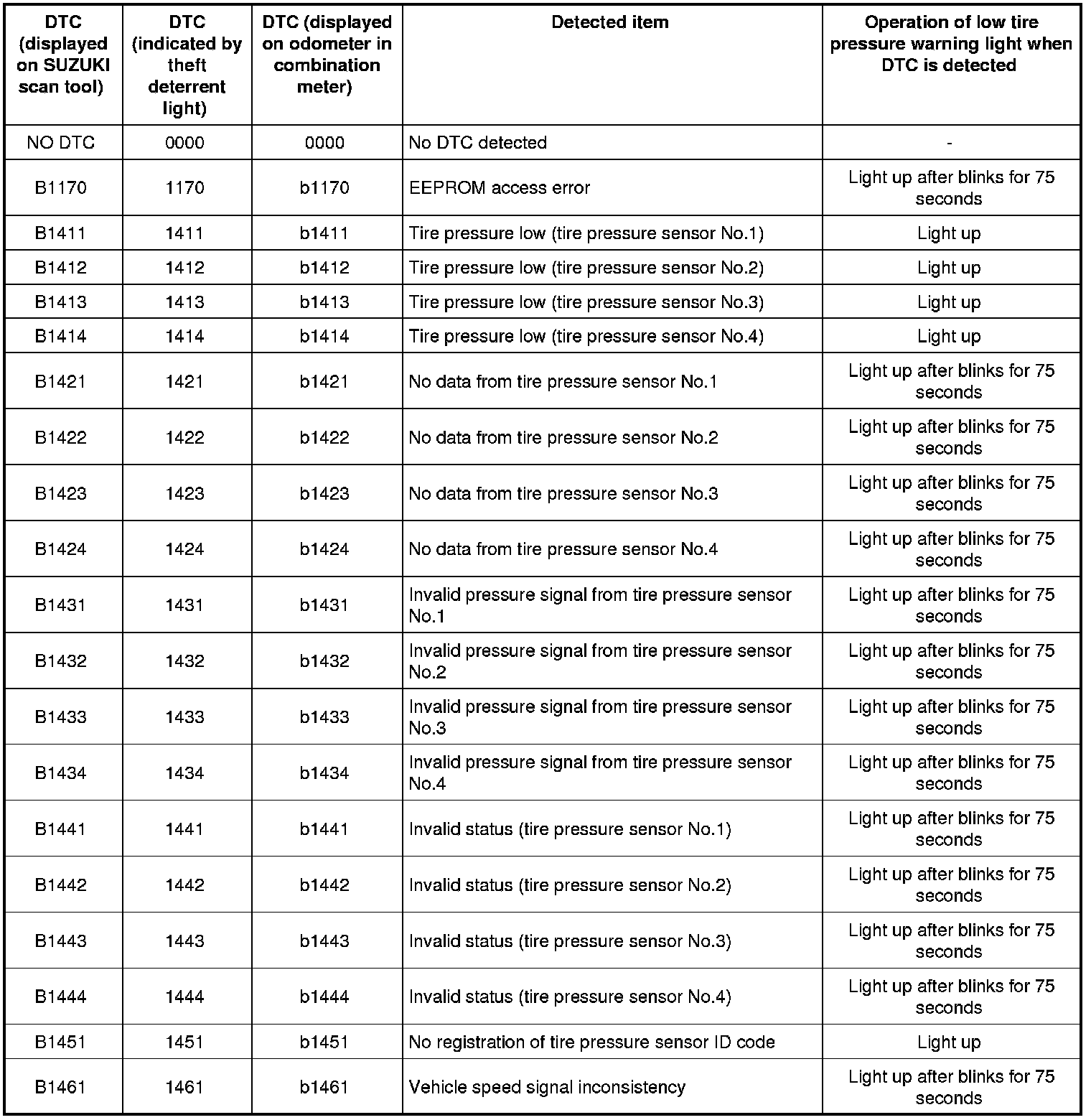

DTC Table

NOTE:

If you do not follow TPMS Check TPMS Check
for DTC diagnosis, the diagnosis will show a false result.

Be sure to follow TPMS Check TPMS Check
for DTC diagnosis, noting Service Precautions Precautions in Diagnosing Troubles.







NOTE:

Each tire pressure sensor is numbered and that number is assigned in the order as its ID code is registered in BCM. It does not indicate the tire position (front-left, front-right, rear-left and rear-right). Check what number of the tire pressure sensor is assigned to which tire, referring to How to Identify Tire Pressure Sensor Number How to Identify Tire Pressure Sensor Number.
