Water Pump: Exploded View
WARNING:
This page is about a different variant/trim than selected.

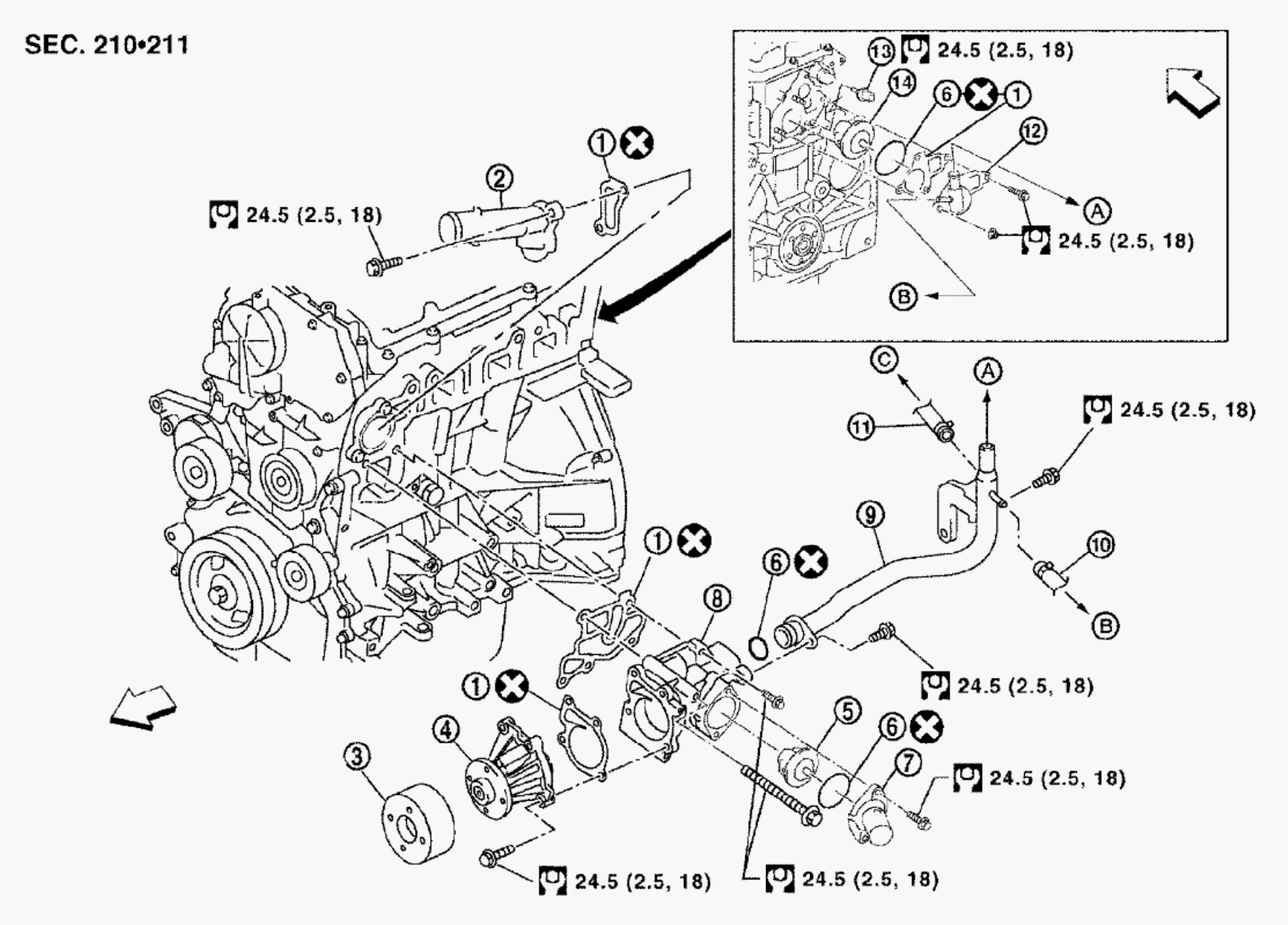

Fig 1: Exploded View Of Water Pump (1 of 2) With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.

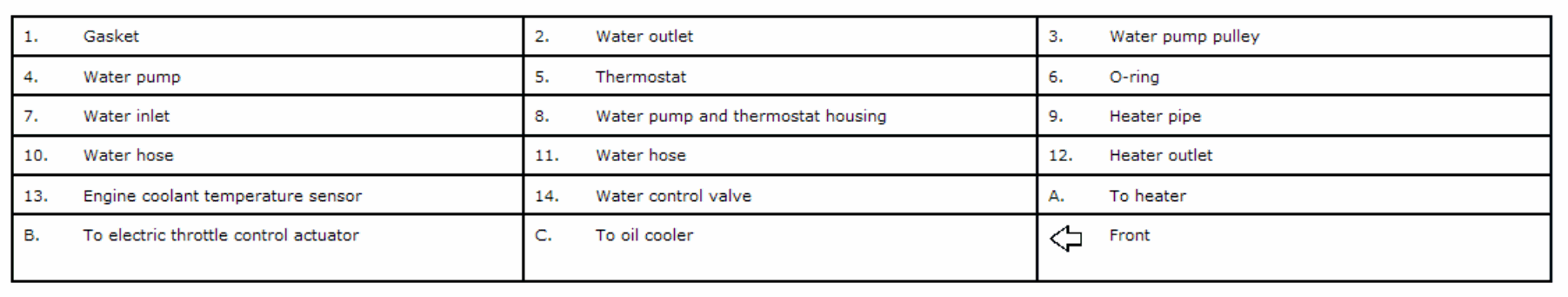

Fig 2: Exploded View Of Water Pump (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
