Water Control Valve: Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Installation is in the reverse order of removal.

Water Control Valve

Install water control valve by making rubber O-ring (1) groove fit to water control valve flange (A) around the whole circumference.

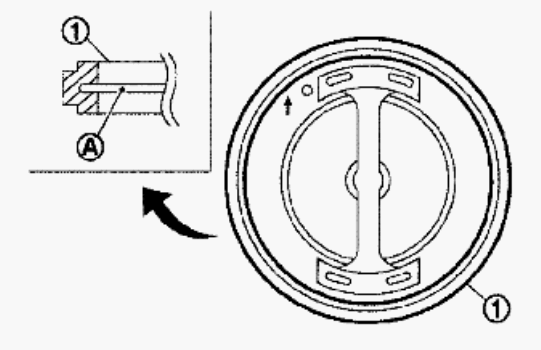

Fig 1: Installing Thermostat With Making Rubber Ring Groove Fit To Thermostat Flange With Whole Circumference
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not reuse O-ring.
Install water control valve with jiggle valve (A) facing upward. The position may deviate within the range of 20° (b).

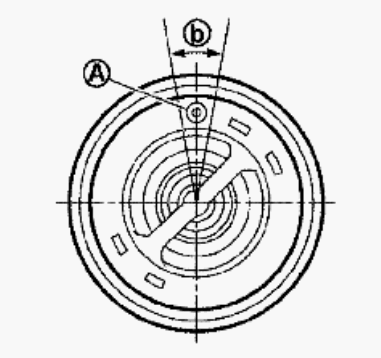

Fig 2: Installing Thermostat With Jiggle Valve Facing Upwards
Courtesy of SUZUKI OF AMERICA CORP.
Install the engine coolant temperature sensor if removed.
Use Genuine RTV Silicone Sealant or equivalent. Refer to [ RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ].
