Engine Control Component Parts Location

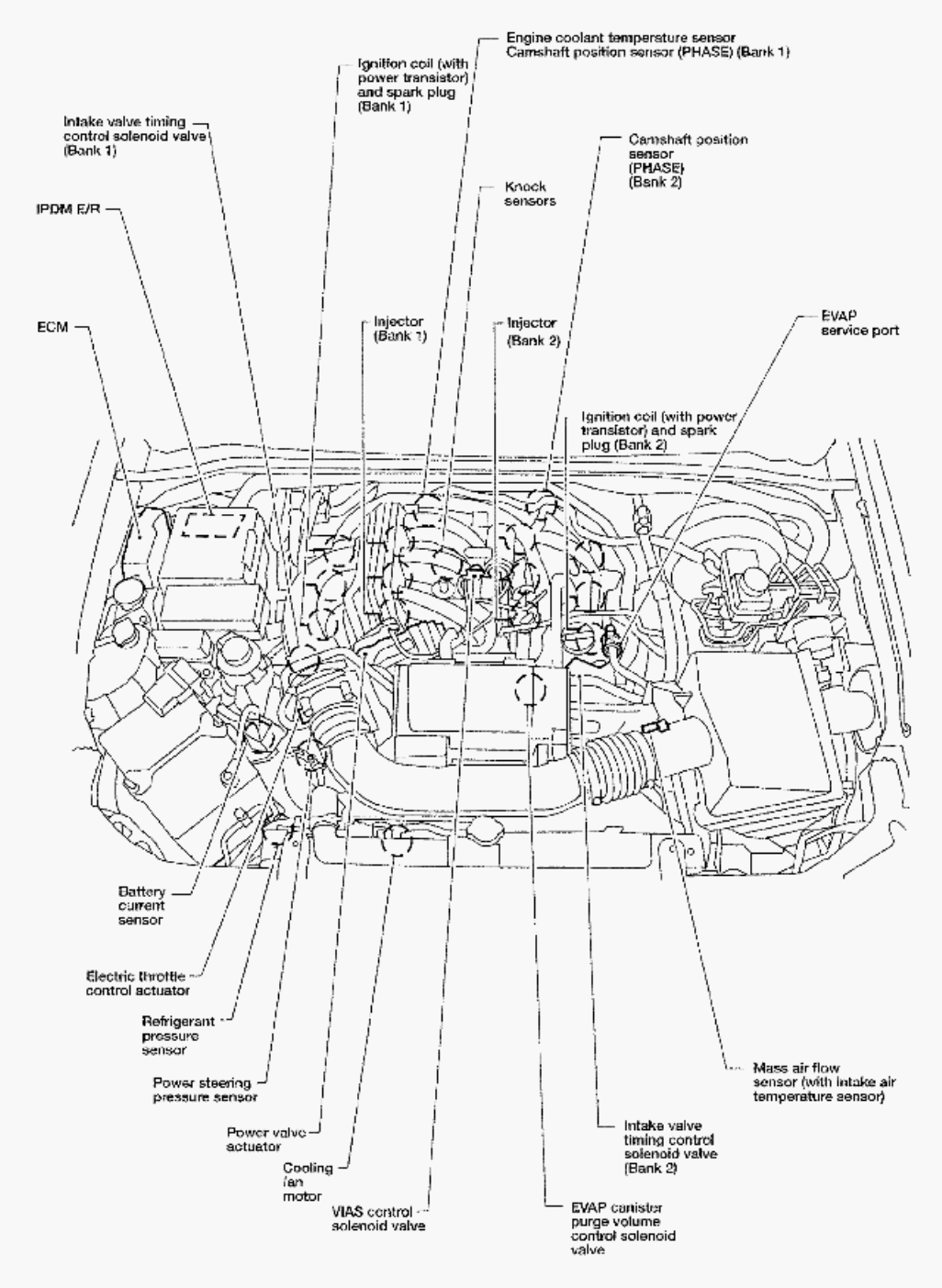

Fig 1: Engine Control Component Parts Location (1 of 8)
G00519797Courtesy of SUZUKI OF AMERICA CORP.

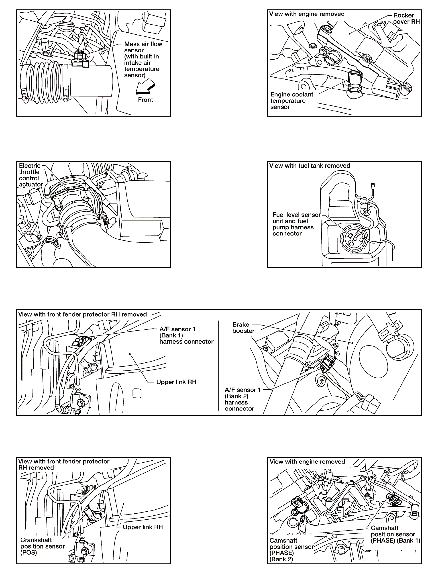

Fig 2: Engine Control Component Parts Location (2 of 8)
G00500667Courtesy of SUZUKI OF AMERICA CORP.

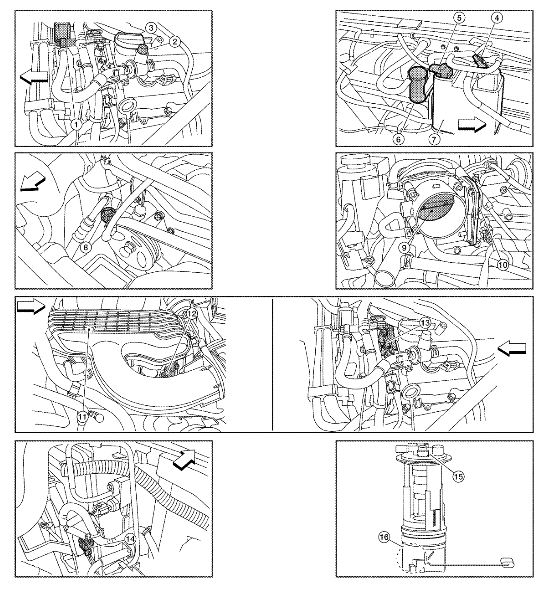

Fig 3: Engine Control Component Parts Location (3 of 8)
G00500668Courtesy of SUZUKI OF AMERICA CORP.

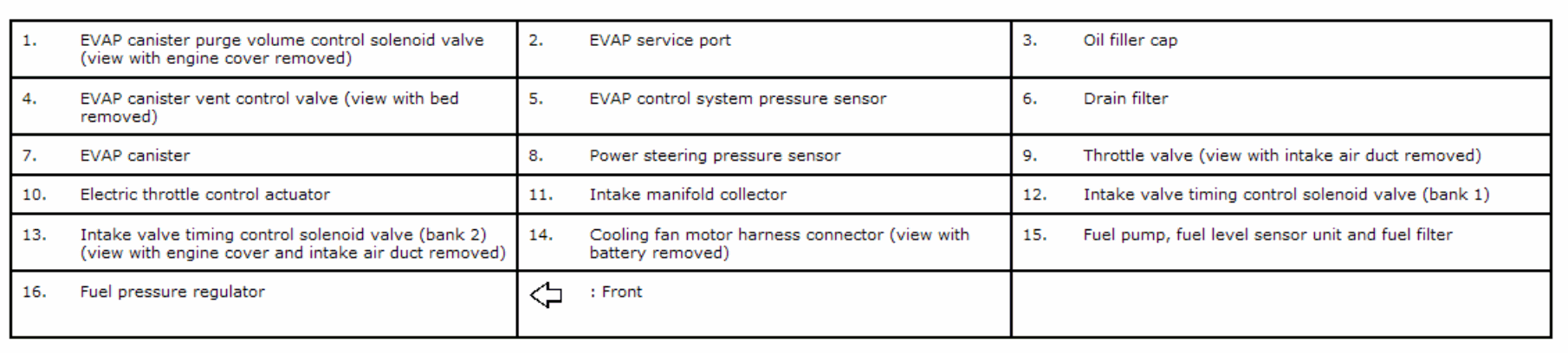

Fig 4: Engine Control Component Parts Location (4 of 8)
G00519798Courtesy of SUZUKI OF AMERICA CORP.

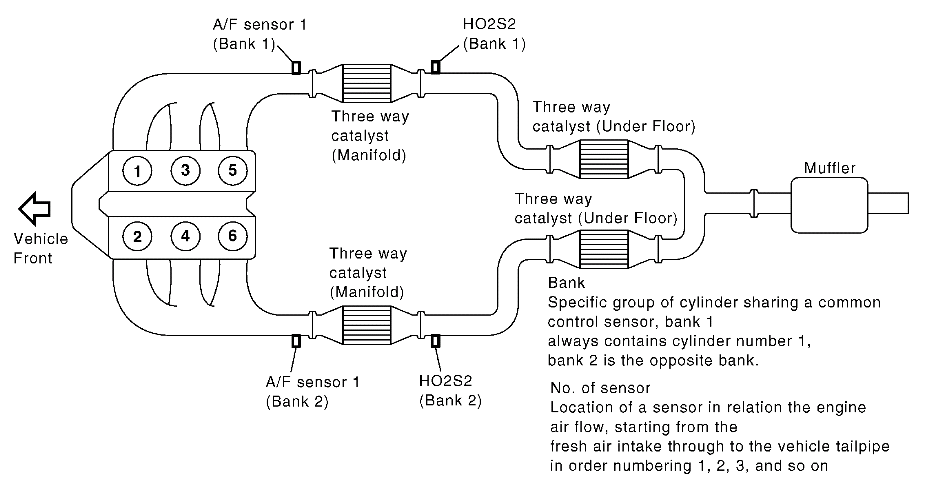

Fig 5: Engine Control Component Parts Location (5 of 8)
G00500669Courtesy of SUZUKI OF AMERICA CORP.

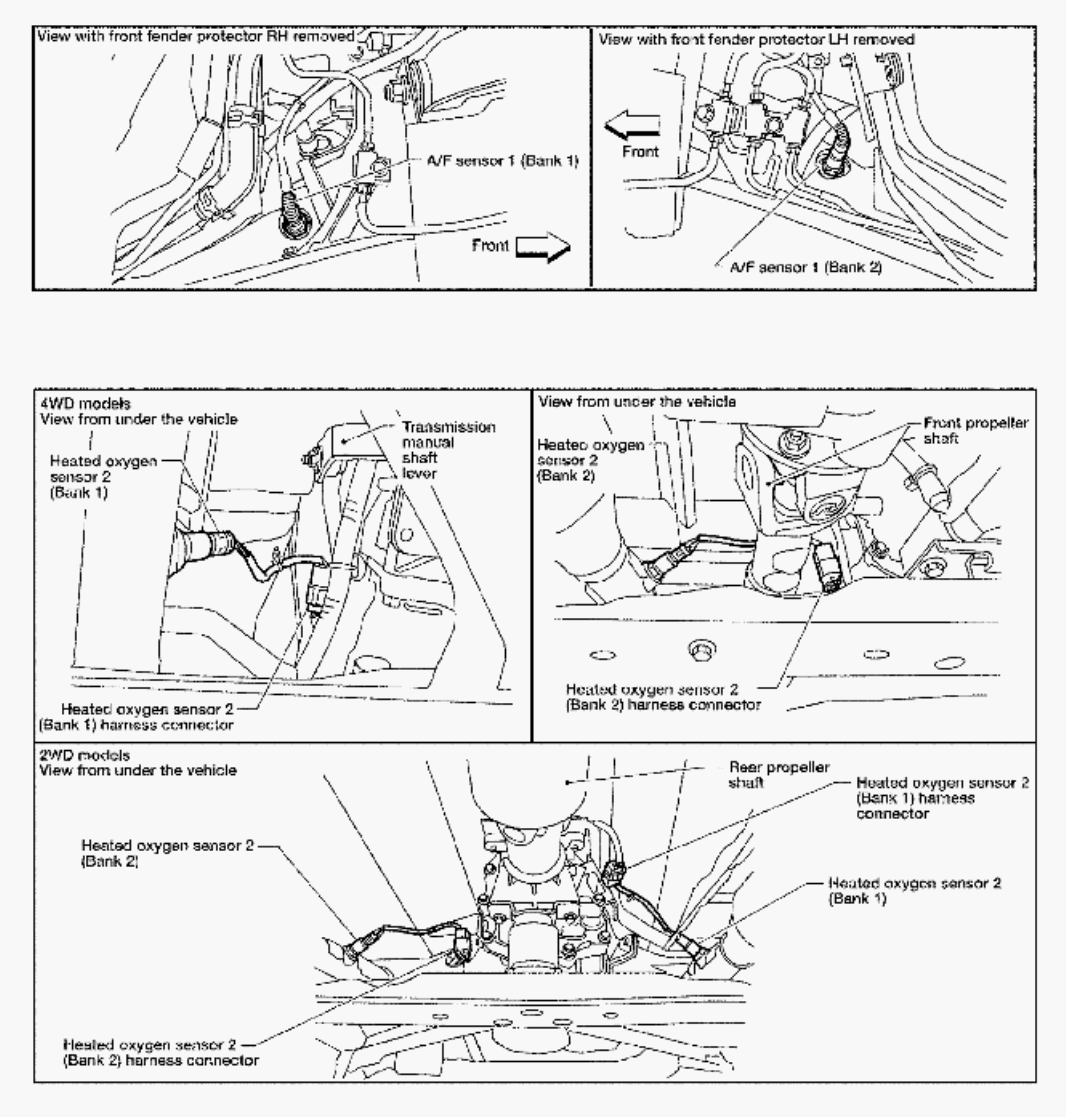

Fig 6: Engine Control Component Parts Location (6 of 8)
G00519799Courtesy of SUZUKI OF AMERICA CORP.

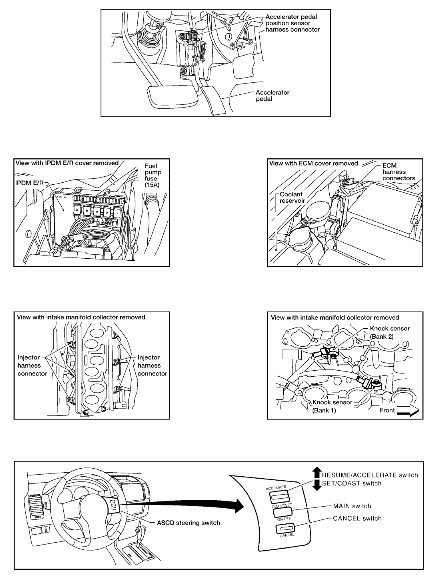

Fig 7: Engine Control Component Parts Location (7 of 8)
G00500671Courtesy of SUZUKI OF AMERICA CORP.

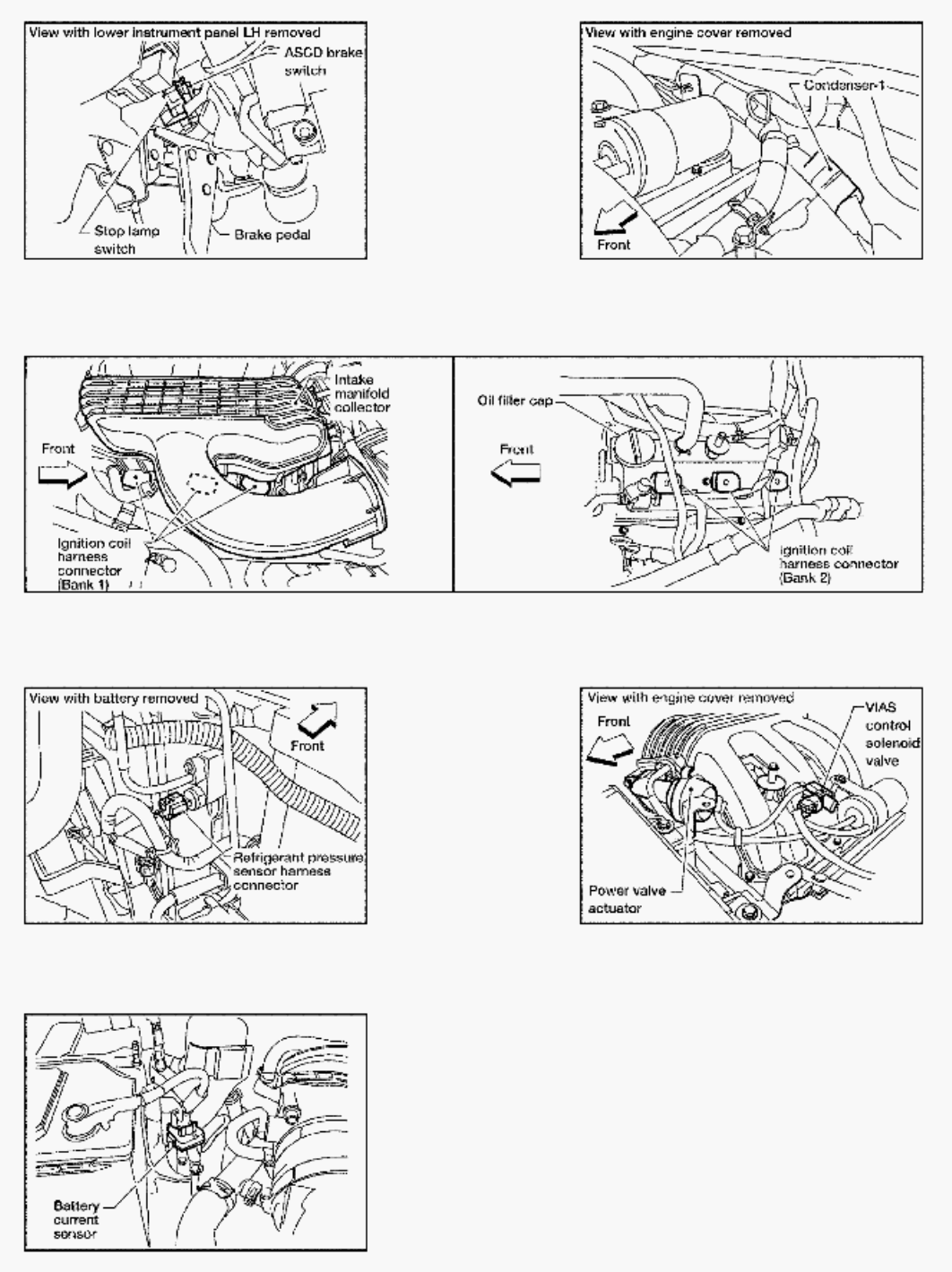

Fig 8: Engine Control Component Parts Location (8 of 8)
G00519800Courtesy of SUZUKI OF AMERICA CORP.
