Spark Plug: Removal and Installation: Removal

  1. Remove the ignition coil. Refer to IGNITION COIL: REMOVAL AND INSTALLATION .
  2. Remove the spark plug using a suitable tool.

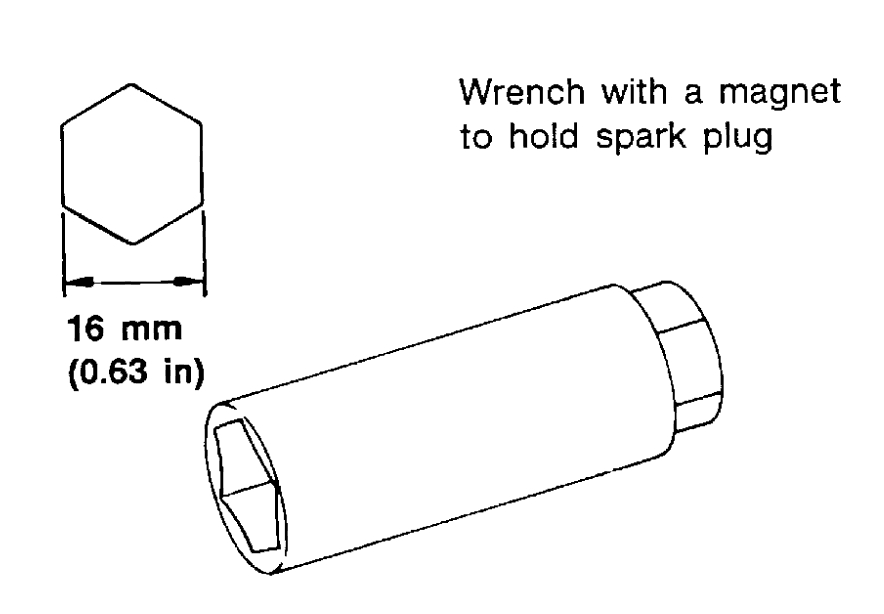

    Fig 1: Wrench With Magnet To Hold Spark Plug
    G00491396Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Do not drop or shock it.
