Oil Pump: Disassembly and Assembly: Disassembly

Remove oil pump housing from oil pump cover.

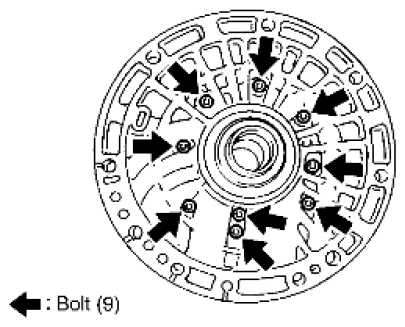

Fig 1: Locating Oil Pump Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove oil pump housing oil seal using suitable tool.

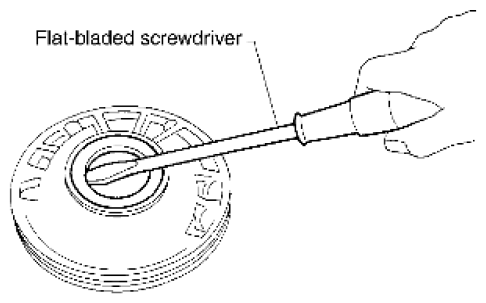

Fig 2: Removing Oil Pump Housing Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not scratch oil pump housing.
Remove O-ring from oil pump housing.

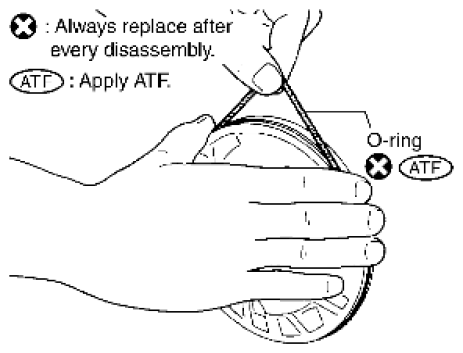

Fig 3: Removing O-Ring From Oil Pump Housing
Courtesy of SUZUKI OF AMERICA CORP.
Remove O-ring from oil pump cover.

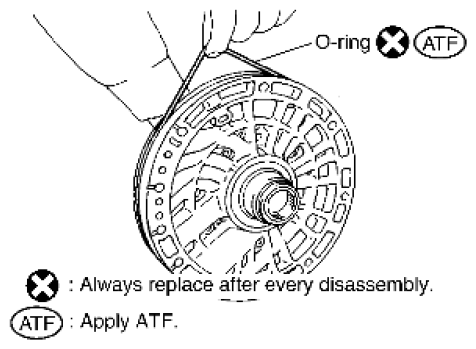

Fig 4: Removing O-Ring From Oil Pump Cover
