High and Low Reverse Clutch: Disassembly and Assembly: Components

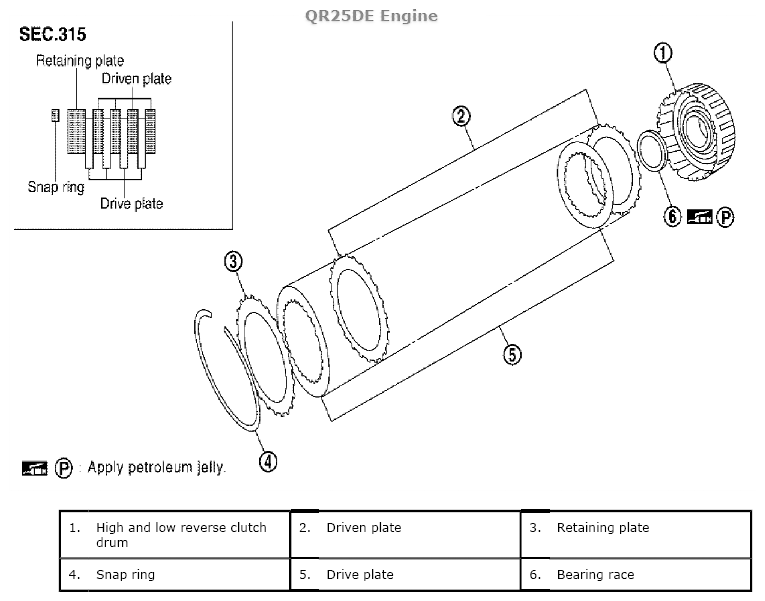

Fig 1: Identifying High And Low Reverse Clutch Components (QR25DE Engine)

Courtesy of SUZUKI OF AMERICA CORP.

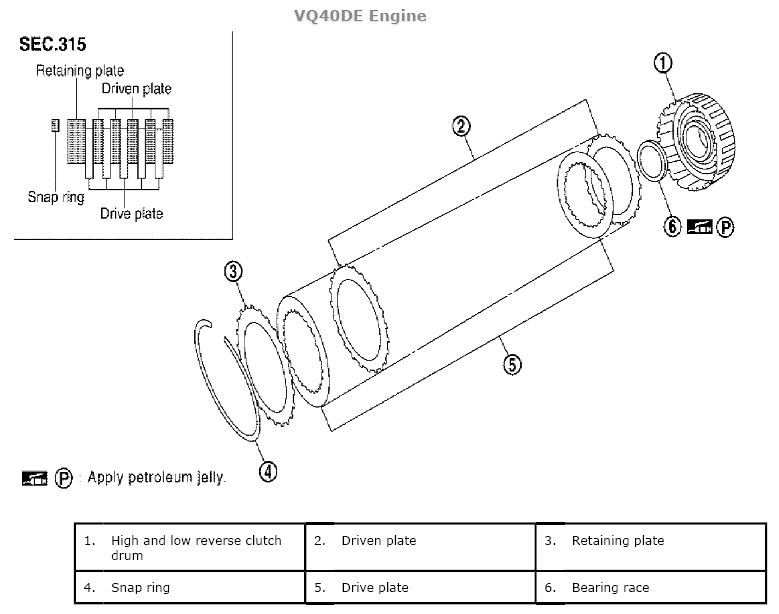

Fig 2: Identifying High And Low Reverse Clutch Components (VQ40DE Engine)

Courtesy of SUZUKI OF AMERICA CORP.
