High and Low Reverse Clutch: Disassembly and Assembly: Assembly

Install drive plates, driven plates and retaining plate in input clutch drum.
CAUTION: Take care with order of plates.
- QR25DE models

  Fig 1: Identifying Drive Plates, Driven Plates And Retaining Plate With Snap Ring
  Courtesy of SUZUKI OF AMERICA CORP.
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Driveplate/Driven plate: 5/5
- VQ40DE models

  Fig 2: Identifying Drive Plates, Driven Plates And Retaining Plate With Snap Ring
  Courtesy of SUZUKI OF AMERICA CORP.
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Driveplate/Driven plate: 7/7
Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.
CAUTION: Take care with order of plates.
Install snap ring in high and low reverse clutch drum using suitable tool.

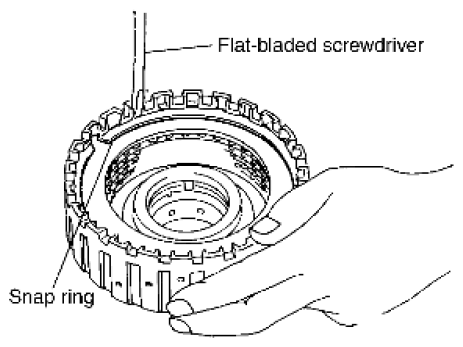

Fig 3: Installing Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.
Install bearing race to high and low reverse clutch drum.

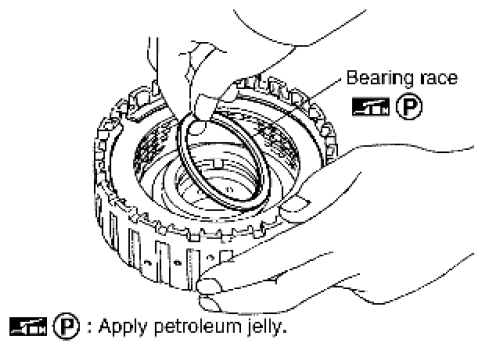

Fig 4: Installing Bearing Race
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Apply petroleum jelly to bearing race.
