Front Sun Gear, 3rd One-Way Clutch: Exploded View

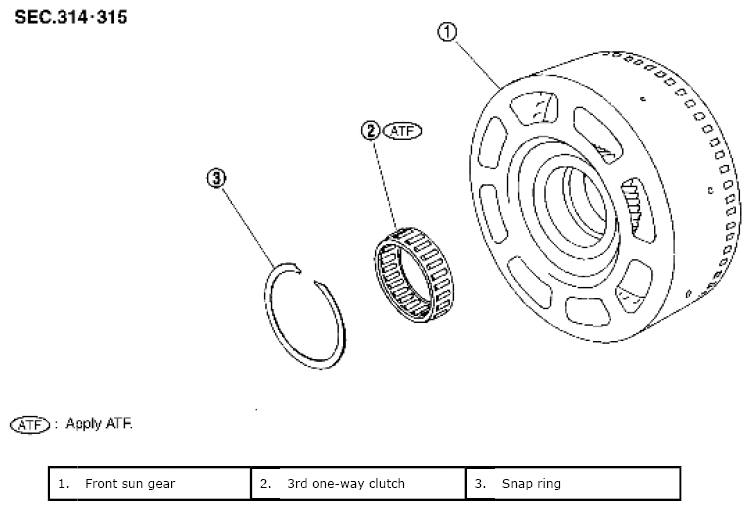

Fig 1: Identifying Front Sun Gear, 3rd One-Way Clutch
G06443015Courtesy of SUZUKI OF AMERICA CORP.
