Front Sun Gear, 3rd One-Way Clutch: Disassembly and Assembly: Disassembly

  1. Remove snap ring from front sun gear using suitable tool.

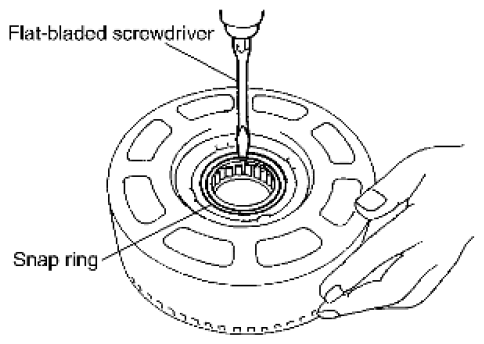

    Fig 1: Removing Snap Ring
    G06443016Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove 3rd one-way clutch from front sun gear.
    Fig 2: Removing 3rd One-Way Clutch
    G06443017Courtesy of SUZUKI OF AMERICA CORP.
