Front Sun Gear, 3rd One-Way Clutch: Disassembly and Assembly: Assembly

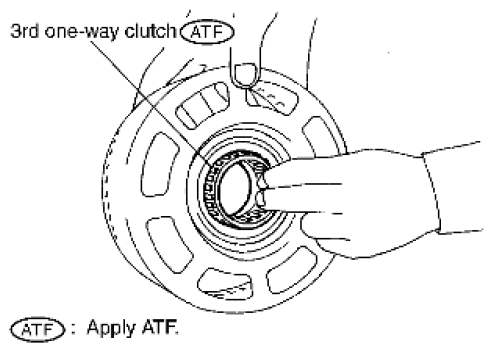

Install 3rd one-way clutch in front sun gear.

Fig 1: Installing 3rd One-Way Clutch In Front Sun Gear
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Apply ATF to 3rd one-way clutch.

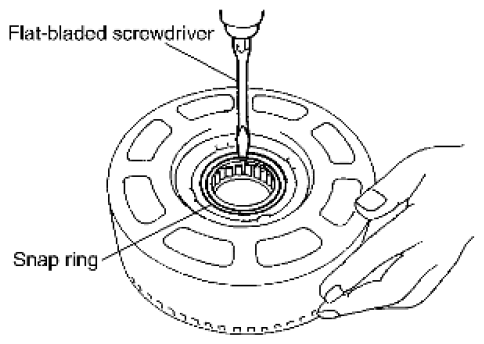

Install snap ring in front sun gear using suitable tool.

Fig 2: Installing Snap Ring In Front Sun Gear
Courtesy of SUZUKI OF AMERICA CORP.

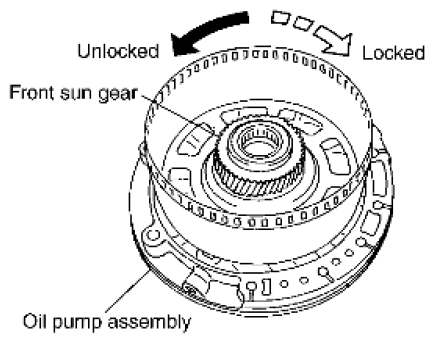

Check operation of 3rd one-way clutch.
1. Hold oil pump assembly and turn front sun gear.

  Fig 3: Checking Operation Of 3rd One-Way Clutch
  Courtesy of SUZUKI OF AMERICA CORP.
2. Check 3rd one-way clutch for correct locking and unlocking directions.
  CAUTION: If not as shown, check installation direction of 3rd one-way clutch.
