Direct Clutch: Disassembly and Assembly: Disassembly

  1. Remove snap ring from direct clutch drum using suitable tool.

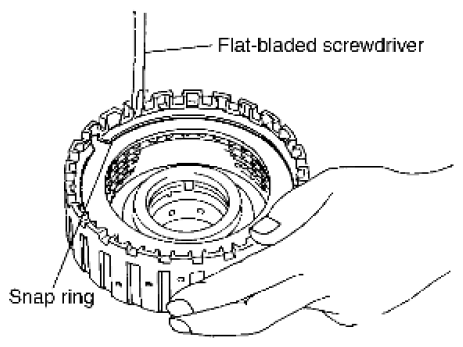

    Fig 1: Removing Snap Ring From Direct Clutch Drum
    G06443063Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove drive plates, driven plates and retaining plate from direct clutch drum.
