Direct Clutch: Disassembly and Assembly: Assembly

  1. Install drive plates, driven plates and retaining plate in direct clutch drum.
    Fig 1: Identifying Drive Plates
    G00518888Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Take care with order of plates.
  2. Install snap ring in direct clutch drum using suitable tool.

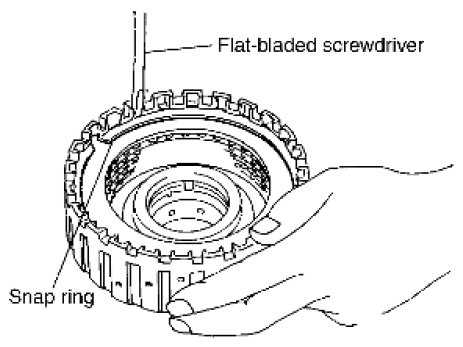

    Fig 2: Installing Snap Ring In Direct Clutch Drum
    G06443064Courtesy of SUZUKI OF AMERICA CORP.
