Control Valve with TCM: Removal and Installation: Components

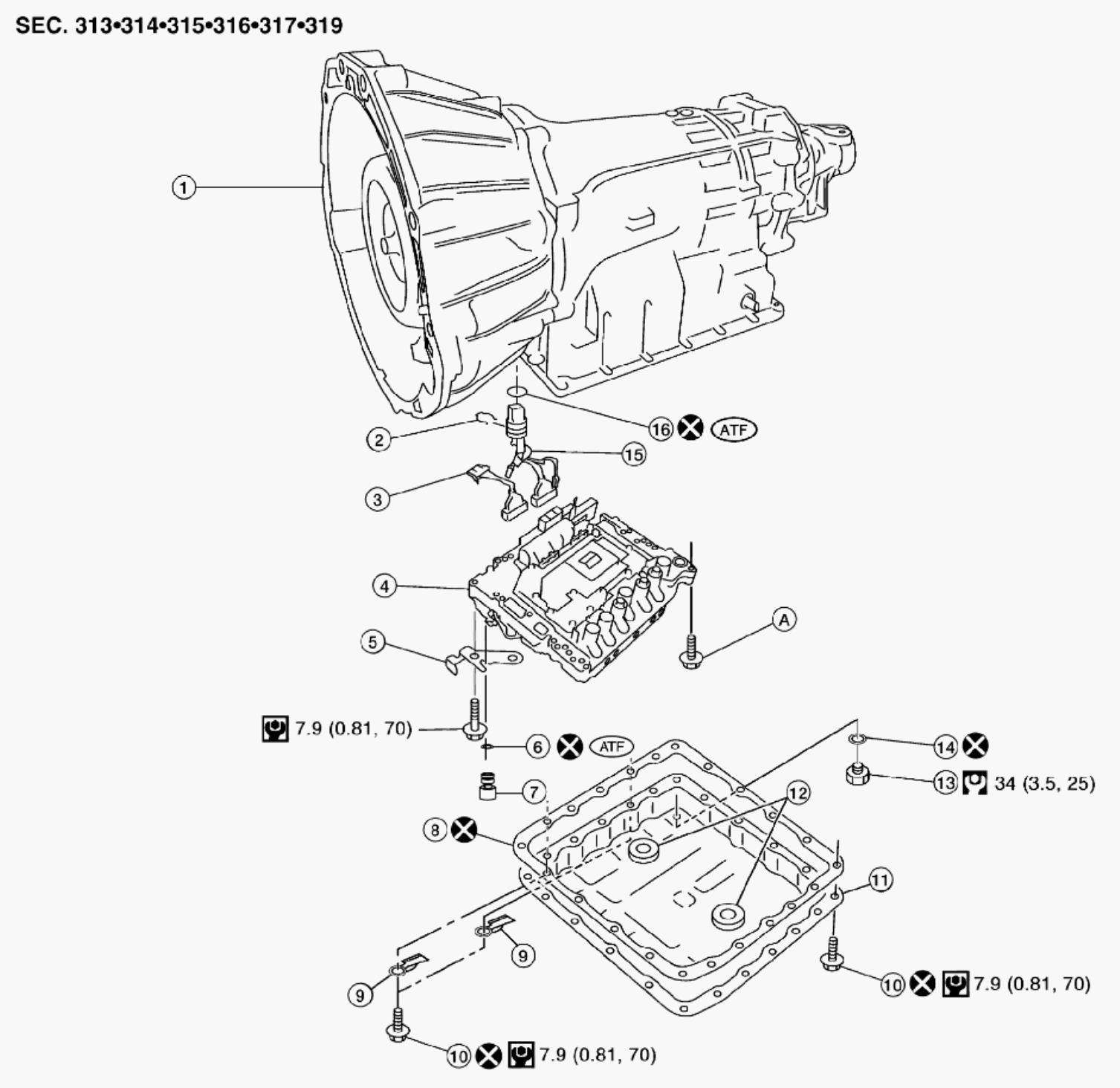

Fig 1: Exploded View Of Transmission (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

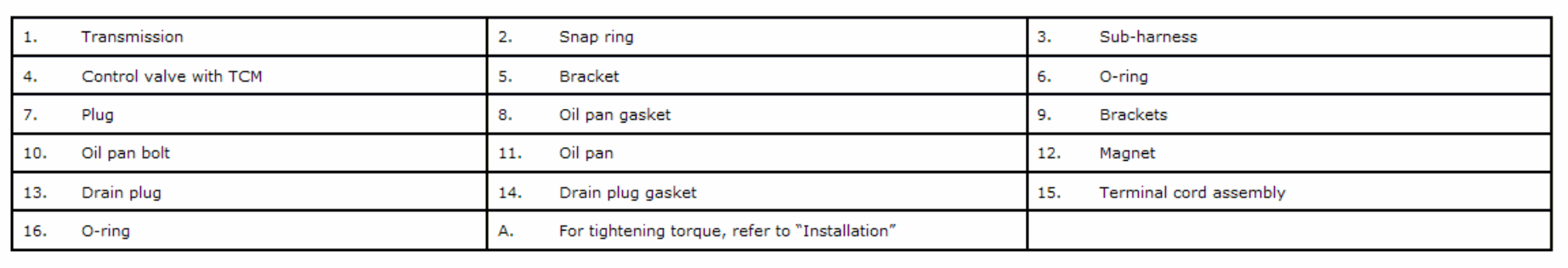

Fig 2: Exploded View Of Transmission (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
