A/T Fluid Cooler: Removal and Installation

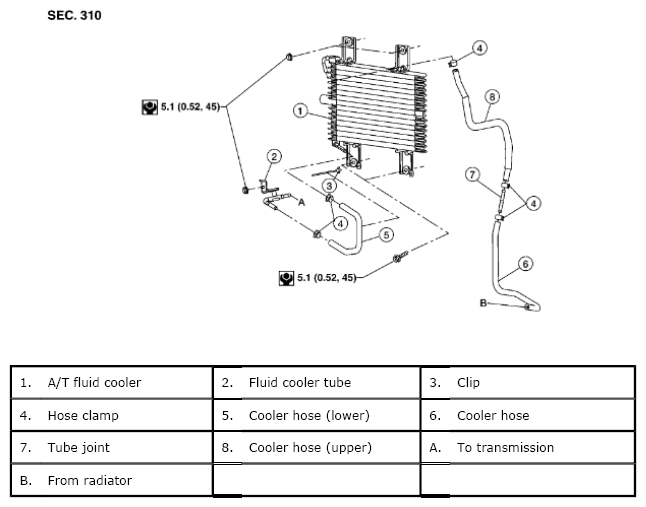

Fig 1: Exploded View Of A/T Fluid Cooler

Courtesy of SUZUKI OF AMERICA CORP.

After completing installation, check fluid level and check for fluid leakage. Refer to [CHECKING THE A/T FLUID (ATF) ].
