"D3" and "33" Positions

The front brake fastens the front sun gear.
The direct clutch is coupled, and the rear carrier and rear sun gear are connected.
The high and low reverse clutch is coupled and the mid sun gear and rear sun gear are connected.

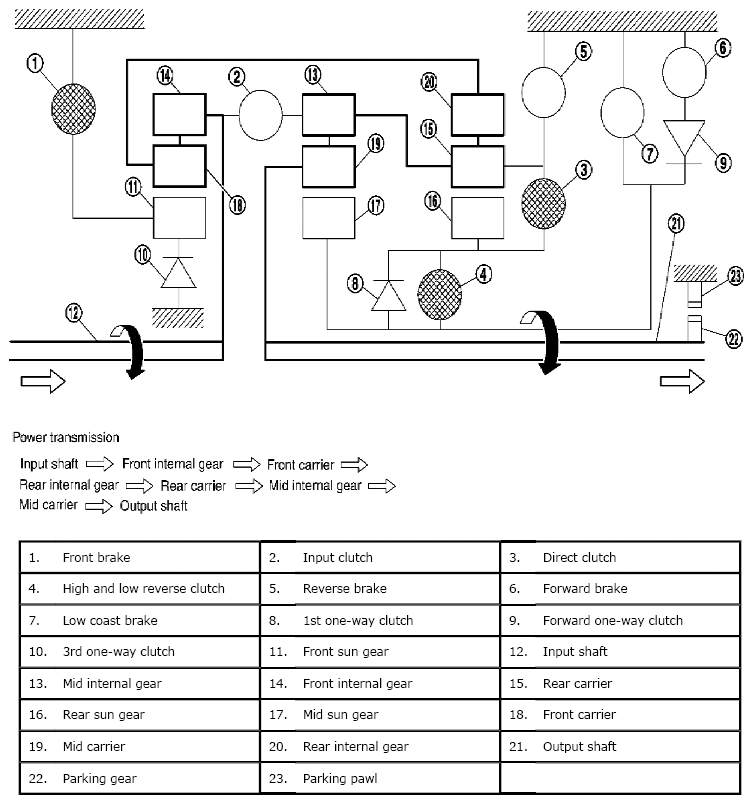

Fig 1: Automatic Transmission Power Flow Diagram - D3 And 33 Positions
Courtesy of SUZUKI OF AMERICA CORP.
