Diagnostic Work Sheet

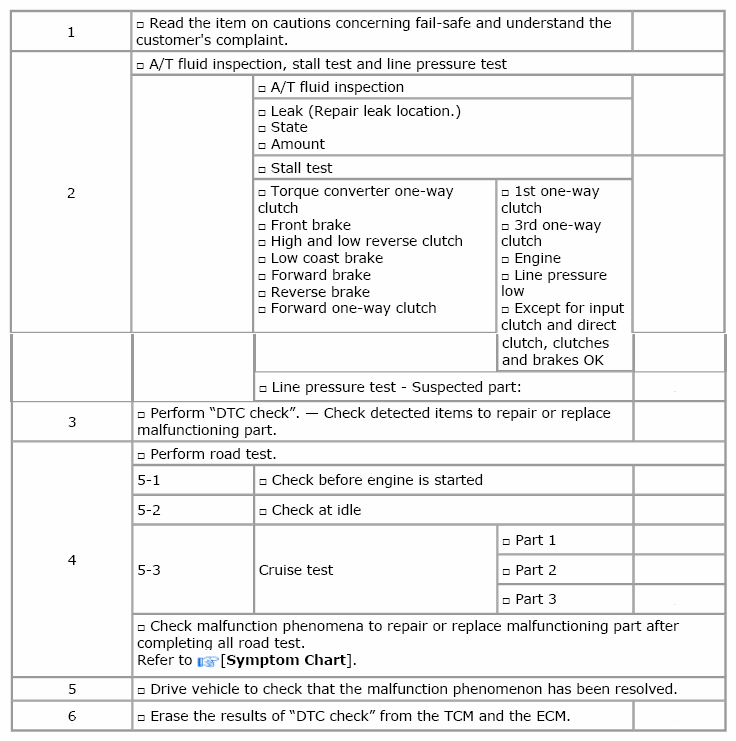

Fig 1: Diagnostic Work Sheet
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
