Clutch Release Mechanism: Removal and Installation [5M/T]: Removal

  1. Remove the manual transmission from the vehicle. Refer to [TRANSMISSION ASSEMBLY: REMOVAL AND INSTALLATION FROM VEHICLE ]
  2. Remove the release bearing sleeve assembly, holder spring, and withdrawal lever from inside the clutch housing.
  3. Remove the dust cover.
  4. Remove the retainer spring from the withdrawal lever.
  5. Remove the release bearing from release bearing sleeve using suitable tool.

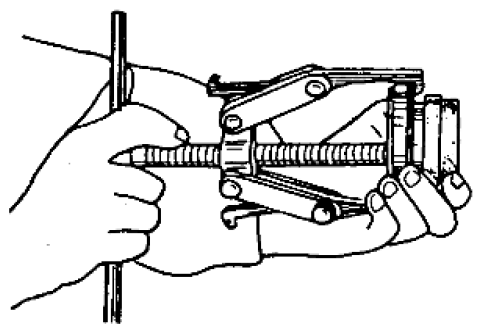

    Fig 1: Removing Release Bearing From Release Bearing Sleeve Using Suitable Tool
    G06445787Courtesy of SUZUKI OF AMERICA CORP.
