Clutch Disc, Clutch Cover: Removal and Installation [5M/T]: Installation
- Apply recommended grease to clutch disc and main drive shaft spline.CAUTION: Do not allow grease to contaminate the clutch facing.

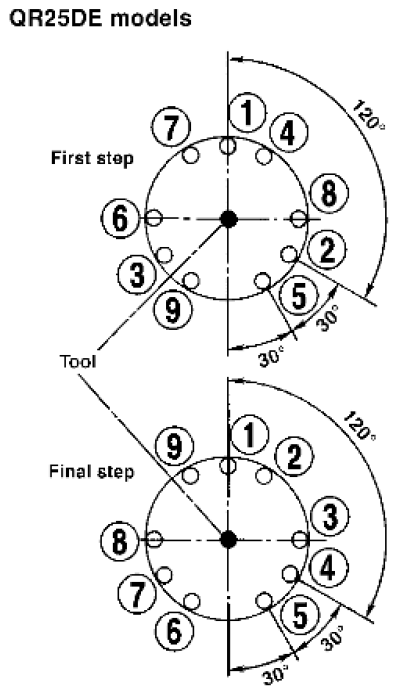

- Install clutch disc and clutch cover. Pre-tighten the bolts and install Tool. Then tighten the clutch cover bolts evenly in two steps to the specified torque in the order shown in illustration. Refer to
[CLUTCH DISC, CLUTCH COVER: EXPLODED VIEW [5M/T] ].
Tool number: ST20630000 (J-26366)
- Install the manual transmission. Refer to [TRANSMISSION ASSEMBLY: REMOVAL AND INSTALLATION FROM VEHICLE ]
