Id Registration With Transmitter Activation Tool

NOTE: This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II Tool J-50190 before ID registration can be performed. Use the following procedure when using the Transmitter Activation Tool J-45295.

Connect SDT.
Select ID REGIST under BCM.
Push the transmitter activation tool against the tire near the front left transmitter. Press the button for 5 seconds.

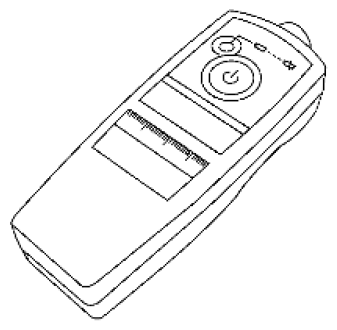

Fig 1: Identifying Transmitter Activation Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: (J-45295)

Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has been completed, the hazard warning lamps flash.

DIAGNOSIS PROCEDURE

Step	Activation tire position	Hazard warning lamp	SDT
1	Front LH	2 times flashing	YET ↓ DONE
2	Front RH
3	Rear RH
4	Rear LH

After completing all ID registrations, press END to complete the procedure.
NOTE: Be sure to register all of the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results display will not function properly.
