Tire Pressure Warning Check Connector

The tire pressure warning check connector can be grounded in order to initiate self-diagnosis without a SDT.

Refer to [SELF-DIAGNOSIS (WITHOUT SDT) ]. The tire pressure warning check connector (1) is located behind the lower portion of the instrument panel LH.

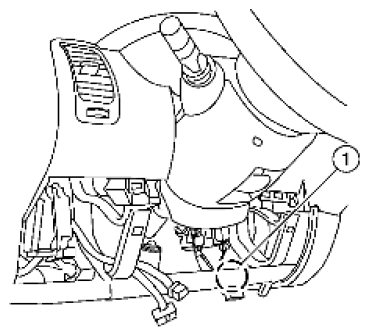

Fig 1: Identifying Tire Pressure Warning Check Connector

Courtesy of SUZUKI OF AMERICA CORP.
