Rear Suspension Assembly: Component

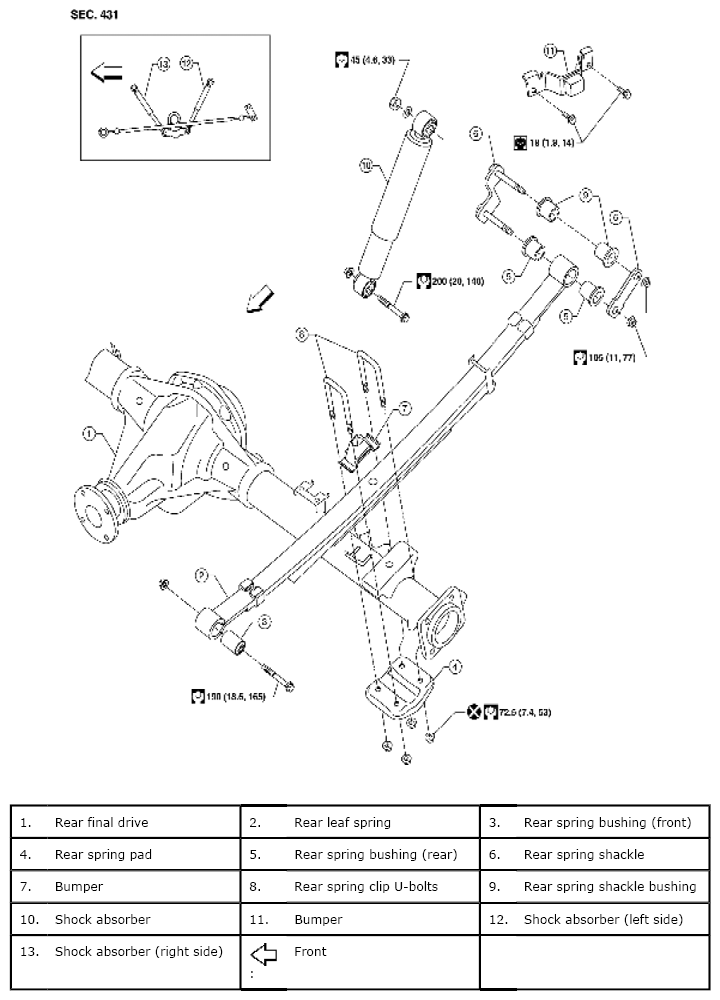

Fig 1: Rear Suspension Assembly Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: When installing the components with rubber bushings, the final tightening of the nuts and bolts must be done with the vehicle in an unladen condition (the fuel, engine coolant, and engine oil full; the spare tire, jack, hand tools and mats in their designated positions) with the tires on the ground.
