Knuckle: Removal and Installation: Notes

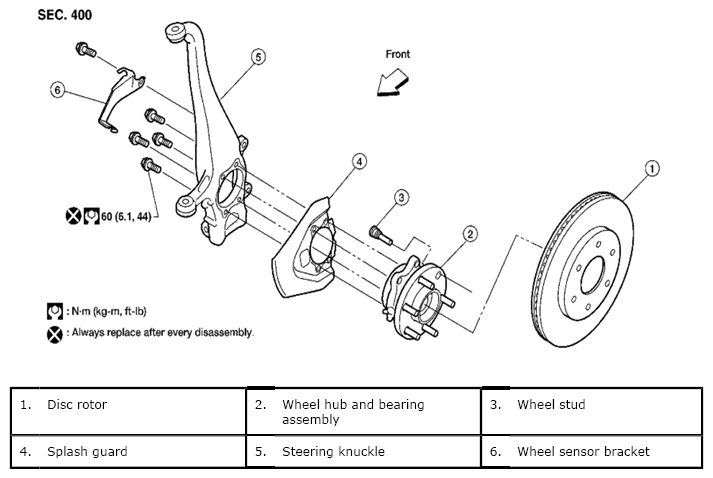

Fig 1: Exploded View Of Knuckle With Torque Specifications
G06444693Courtesy of SUZUKI OF AMERICA CORP.
