Camber And Caster

Measure camber and caster of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.

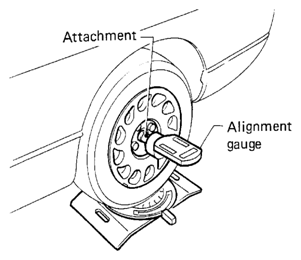

Fig 1: Measuring Camber And Caster
Courtesy of SUZUKI OF AMERICA CORP.

Camber: Refer to [SERVICE DATA AND SPECIFICATIONS ].

NOTE: Some vehicles may be equipped with straight (non-adjustable) lower link bolts and washers. In order to adjust camber and caster on these vehicles, first replace the lower link bolts and washers with adjustable (cam) bolts and washers.

If outside of the specified value, adjust camber and caster using the adjusting bolts in the front lower link.

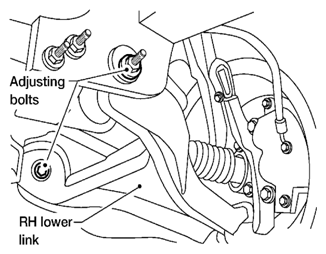

Fig 2: Identifying Camber And Caster Adjusting Bolts

Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: After adjusting the camber, then check the toe-in.

NOTE: Camber changes about 3' (0.05°) minutes with each graduation of one adjusting bolt. Refer to table below for examples of lower link adjusting bolt effect on camber and caster.

REAR ADJUSTING BOLT CHART

Rear adjusting bolt	1 In	1 Out	1 In	1 Out	0	0	1 In	1 Out
Front adjusting bolt	1 Out	1 In	1 In	1 Out	1 In	1 Out	0	0
Camber Degree minute (Decimal degree)	0' (0°)	0' (0°)	7' (0.12°)	- 7' (- 0.12°)	3' (0.05°)	- 3' (-0.05°)	3' (0.05°)	- 3' (-0.05°)
Caster Degree minute (Decimal degree)	- 12' (-0.20°)	12' (0.20°)	0' (0°)	0' (0°)	6' (0.10°)	- 6' (-0.10°)	- 6' (-0.10°)	6' (0.10°)

Tighten the adjusting bolt nuts to specification. Refer to [FRONT SUSPENSION ASSEMBLY: COMPONENT ].
