Leaf Spring: Removal and Installation: Removal

Remove the wheel and tire from the vehicle using power tool.
Support the rear final drive assembly with a suitable jack to relieve the tension from the rear leaf spring.
- The axle weight should be supported, but there should be no compression in the rear leaf spring.
Remove the four rear spring clip U-bolt nuts using power tool, then remove the rear spring pad and bumper.

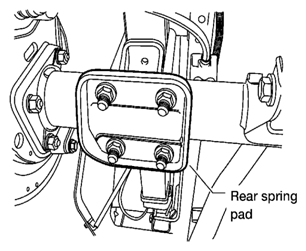

Fig 1: Identifying U-Bolt Nuts And Rear Spring Pad
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear spring shackle and bushings using power tool.

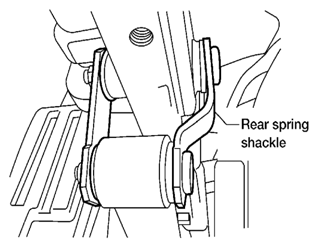

Fig 2: Identifying Rear Spring Shackle And Bushings
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear leaf spring front nut and bolt using power tool.

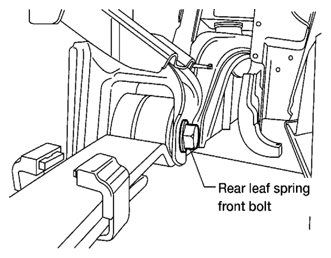

Fig 3: Identifying Rear Leaf Spring Front Nut And Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the rear leaf spring.
