Rear Seat Belt: Exploded View

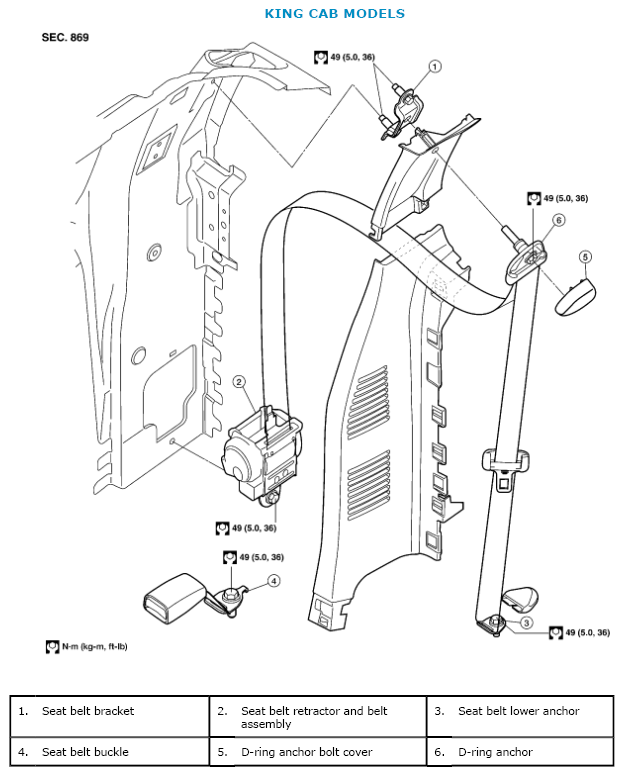

Fig 1: Exploded View Of Rear Seat Belt (King Cab Models)
G06445965Courtesy of SUZUKI OF AMERICA CORP.

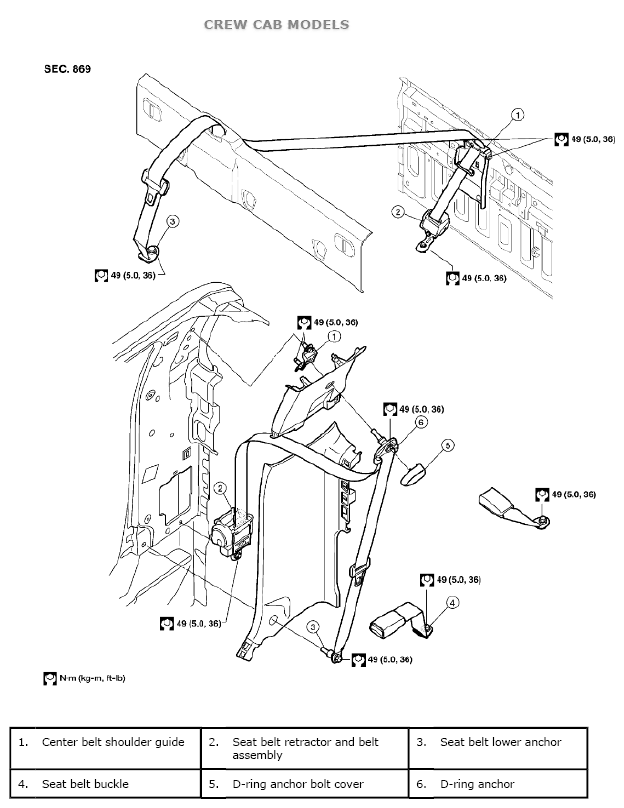

Fig 2: Exploded View Of Rear Seat Belt (Crew Cab Models)
G06445966Courtesy of SUZUKI OF AMERICA CORP.
